Product Description

- IR Receiver -

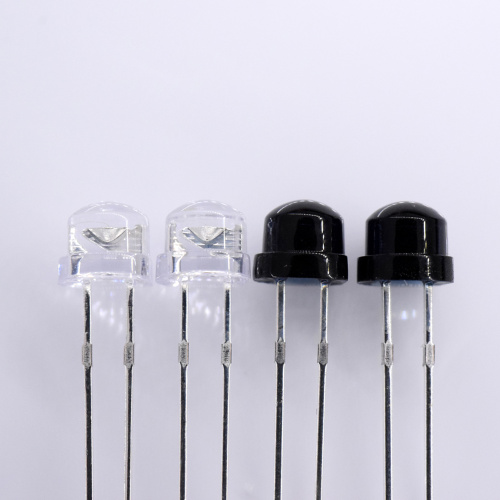

U5293IRC-94L & U5293PTD

For some infrared light emitting diode application, people will also need the IR receiver for receive the signal. Shenzhen Best LED Opto-electronic Co.,Ltd are not only produce the IR LED but also can supply the IR receiver with different shape. Which means you can order the infrared emitters and detectors in our factory at the same time~ For this U5293IRC-94L and U5293PDD, one for emitting the infrared ray and other one for receiving the signal. For both all this LED pair, we package it with brand new LED chip from Taiwan and connect the inside circuit with pure golden wire. U5293IRC-94L is a infrared LED that can emits 940nm wavelength, we package it with straw hat top so that it will have a wider viewing angle. Same as the U5293PDD, with this straw hat top, it can got a bigger receiver. Do you need some infrared LED pair for your project? Contact us for more detail~

- Size: 4.8mm*H4.85mm

- Chip Number: 1 chip

- Color: 940nm IR led&IR Receiver

- Type: Dual in-line package

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

5mm straw hat led

These through-hole LED case are also available for UV LED, 570nm Green LED, Amber LED, IR LED, through-hole blue LED, yellow LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	100mW
Pulse Forward Current	IFP	500mA
Forward Current	IF	50mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

1.1

1.4

V

IF=50mA

Pulse Forward Voltage

VF

3

V

IFP=500mA

Radiant Intensity

IE

5

12

mw/sr

IF=50mA

Peak Wavelength

λP

930

940

950

nm

IF=50mA

Total Radiated Power

PO

28

mw

IF=50mA

Half Width

Dl

50

nm

IF=50mA

Viewing Half Angle

2q1/2

±60

deg

IF=50mA

Reverse Current

IR

5

uA

VR=5V

Rise Time

Tr

25

ns

IF=50mA

Fall Time

Tf

13

ns

IF=50mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

1206 smd Receiver

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Collector-Emitter Voltage	VCEO			30	V
Emitter-Collector Voltage	VECO			5	V
Collector Dark Current	ICEO			30	nA	VCE=20V Ee=0mw/cm2
Collector Dark Current	ICEO			150	uA	VCE=70V Ee=0mw/cm2
On State Collector Current	IC(on)		0.7	4	mA	Ee=1mw/cm2 Vce=5v
Collector-Emitter Breakdown Voltage	Bvceo	85			V	ICBO=100uA Ee=0mw/cm2
Emitter-Collector Breakdown Voltage	Bvceo	8.2			V	IECO=10uA
Collector-Emitter Saturation Voltage	VCE(sat)			0.3	V	IC=2mA IB=100uA Ee=1mw/cm2
Photocurrent 1	IPCE	300		400	uA	Vce=5V Ee=1mw/cm2 λP=850nm
Photocurrent 2	IPCE	500		600	uA	VCE=5V Ee=1mw/cm2 λP=940nm
Current gain	hFE	2000		3000	uA	VCE=5V IC=2mA
Wavelenghth of Peak Sensitivity	λP		940		nm
Range of Spectral Bandwidth	λ0.5	700		1100	nm
Response Time-Rise Time	tR		15		us	Vce=5v Ic=1mA RL=1000Ω
Response Time-Fall Time	tF		15		us	Vce=5v Ic=1mA RL=1000Ω
Half Sensitivity angle	△λ		±10		deg
Collector-base Capacitance	CCB			8	PF	F=1MHz,VCB=3V
