- IR Receiver LED -

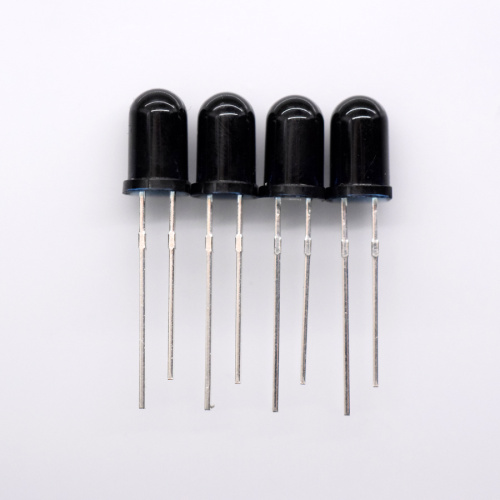

503PT940D-A3

Phototransistor is also called PD diode, 503PT940D-A3 is a high speed and high sensitive NPN silicon photo transistor. There have other similar product - photodiode. Then what's the different from photodiode and phototransistor? Typically, the phototransistor can got more large output than photodiode. Phototransistor is of milliampere level. Phototransistor dark current is larger. Photodiode response time is shorter, phototransistor response time is less than 100 nanoseconds, phototransistor response time is less than 5-20 microseconds. Photodiode linearity is better, phototransistor linearity is worse.But PT chip size is small,cost is low, phototransistor cost is high. Phototransistor tube is more susceptible to the influence of ambient temperature, photocurrent fluctuation is large. The light input of the phototransistor is easily saturated, which is related to its high amplification factor. Phototransistor can be used for reflecting and receiving light occasions. Photodiode tube is generally directly receiving light. 503PT940D-A3 is a phototransistor that have 20 degree viewing angle.

940nm ir LED Receiver

- Size: 5.0*H8.7mm

- Chip Number:1 chips

- Color: 940nm

- Type: Black

- Chip brand: tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm IR Through-hole LED -

5mm led

*This size are also available for other LED, such as UV LED, IR LED(810nm LED, 850nm LED...), Amber LED, Yellow LED, RGB LED, Blinking LED Lamps *

- Working Through-hole IR Receiver LED -

PT940 led

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole IR Receiver LED Parameter -

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Collector-Emitter Voltage	VCEO			30	V
Emitter-Collector Voltage	VECO			6.5	V
Collector Dark Current	ICEO			100	nA	VCE=20V Ee=0mw/cm2
Collector-Emitter Breakdown Voltage	Bvceo	30		100	V	ICBO=100uA Ee=0mw/cm2
Emitter-Collector Breakdown Voltage	Bvceo	6			V	IECO=10uA
Collector-Emitter Saturation Voltage	VCE(sat)			0.4	V	IC=2mA IB=100uA Ee=1mw/cm2
Photocurrent 1	IPCE	30		90	uA	Vce=5V Ee=1mw/cm2 λP=850nm
Photocurrent 2	IPCE	90		270	uA	VCE=5V Ee=1mw/cm2 λP=940nm
Current gain	hFE	270		900	uA	VCE=5V IC=2mA
Wavelenghth of Peak Sensitivity	λP		940		nm
Range of Spectral Bandwidth	λ0.5	400		1100	nm
Response Time-Rise Time	tR		15		us	Vce=5v Ic=1mA RL=1000Ω
Response Time-Fall Time	tF		15		us	Vce=5v Ic=1mA RL=1000Ω
Half Sensitivity angle	△λ		±10		deg
Collector-base Capacitance	CCB			8	PF	F=1MHz,VCB=3V
