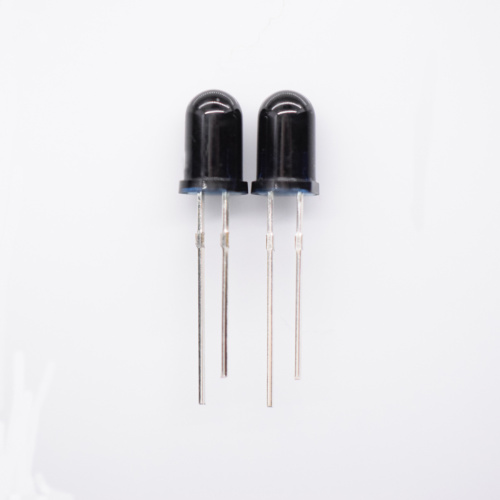

5mm IR Receiver Phototransistor Black Lens

5mm IR Receiver Phototransistor Black Lens

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- IR Receiver -

503PT850D-A3

503PT850D-A3 is a high speed and high sensitive NPN silicon phototransistor molded in a standard Φ5mm package. These 503PT850D-A3 can easy to match 850nm infrared emitter and can replace the traditional CDS photosensitive resistor. These phototransistor does not contain cadmium, lead and other harmful substances. It meets the ROHS standard of EU. It is suitable for all kinds of light-controlled lighting products, such as night lamp, lawn lamp, solar lamp, etc. Automatically adjusting background light, such as LCD, mobile phone, camera, security monitor, etc. Controlling all kinds of light-controlled Film-controlled toys, all kinds of light-controlled infrared detection and testing equipment, etc. Products can receive 700-1100 nm wide wavelength light, with 850 nm 940 nm being the most sensitive.

850nm ir LED Receiver

- Size: 5.0*H8.7mm

- Chip Number:1 chips

- Color: 850nm

- Type: Black

- Chip brand: tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 5mm IR Receiver LED -

5mm led

*This size are also available for other LED, such as UV LED, IR LED(810nm LED, 850nm LED...), Amber LED, Yellow LED, RGB LED, Blinking LED Lamps *

- Working IR Receiver LED -

PT850 led

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole IR Receiver LED Parameter -

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Collector-Emitter Voltage	VCEO			30	V
Emitter-Collector Voltage	VECO			5	V
Collector Dark Current	ICEO			100	nA	VCE=20V Ee=0mw/cm2
Collector-Emitter Breakdown Voltage	Bvceo	30		100	V	ICBO=100uA Ee=0mw/cm2
Emitter-Collector Breakdown Voltage	Bvceo	6			V	IECO=10uA
Collector-Emitter Saturation Voltage	VCE(sat)			0.4	V	IC=2mA IB=100uA Ee=1mw/cm2
Photocurrent 1	IPCE	30		90	uA	Vce=5V Ee=1mw/cm2 λP=850nm
Photocurrent 2	IPCE	90		270	uA	VCE=5V Ee=1mw/cm2 λP=940nm
Current gain	hFE	270		900	uA	VCE=5V IC=2mA
Wavelenghth of Peak Sensitivity	λP		850		nm
Range of Spectral Bandwidth	λ0.5	400		1100	nm
Response Time-Rise Time	tR		15		us	Vce=5v Ic=1mA RL=1000Ω
Response Time-Fall Time	tF		15		us	Vce=5v Ic=1mA RL=1000Ω
Half Sensitivity angle	△λ		±10		deg
Collector-base Capacitance	CCB			8	PF	F=1MHz,VCB=3V
