Photodiode 5mm IR Receiver Straw Hat Top 700-1100nm

Photodiode 5mm IR Receiver Straw Hat Top 700-1100nm

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- IR Receiver -

U5293PT940D-A3

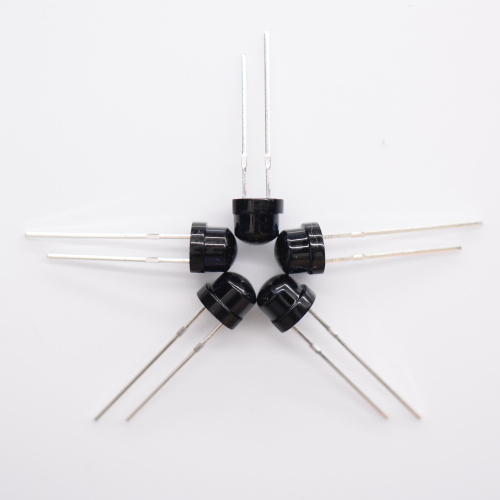

U5293PT940D-A3 is a receiver diode. It has a long control distance, an effective control distance of more than 1.5 meters, and low current loss under static state. It has good sensitivity, sensitive start-up and control under low illumination, and stable output of current signal under strong light. The product is designed with black epoxy resin colloid and has high sensitivity. The angle of view is 120 degrees. The straw cap launcher is also used as the opposite tube. Shenzhen Best LED Opto-electronic Co., Ltd specializes in the production of PT straw cap photosensitive tube receiver photodiode photosensitive triode, as well as various emitters, infrared light-emitting diodes, red, yellow, blue, green and white LED light-emitting diodes.

- Size: 408mm*H4.85mm

- Chip Number: 1 chip

- Color: 940nm IR Receiver led

- Type: Dual in-line package

- Chip brand: Tyntek

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

5mm straw hat led

These through-hole LED case are also available for UV LED, 570nm Green LED, Amber LED, IR LED, through-hole blue LED, yellow LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Collector-Emitter Voltage	VCEO			30	V
Emitter-Collector Voltage	VECO			6.5	V
Collector Dark Current	ICEO			100	nA	VCE=20V Ee=0mw/cm2
Collector-Emitter Breakdown Voltage	Bvceo	30		100	V	ICBO=100uA Ee=0mw/cm2
Emitter-Collector Breakdown Voltage	Bvceo	6			V	IECO=10uA
Collector-Emitter Saturation Voltage	VCE(sat)			0.4	V	IC=2mA IB=100uA Ee=1mw/cm2
Photocurrent 1	IPCE	5		15	uA	Vce=5V Ee=1mw/cm2 λP=850nm
Photocurrent 2	IPCE	15		45	uA	VCE=5V Ee=1mw/cm2 λP=940nm
Current gain	hFE	45		135	uA	VCE=5V IC=2mA
Wavelength of Peak Sensitivity	λP		940		nm
Range of Spectral Bandwidth	λ0.5	400		1100	nm
Response Time-Rise Time	tR		15		us	Vce=5v Ic=1mA RL=1000Ω
Response Time-Fall Time	tF		15		us	Vce=5v Ic=1mA RL=1000Ω
Half Sensitivity angle	△λ		±10		deg
Collector-base Capacitance	CCB			8	PF	F=1MHz,VCB=3V
