3W 1200nm Infrared LED High Power LED 2835

3W High Power 1200nm LED with 2835 SMD LED;

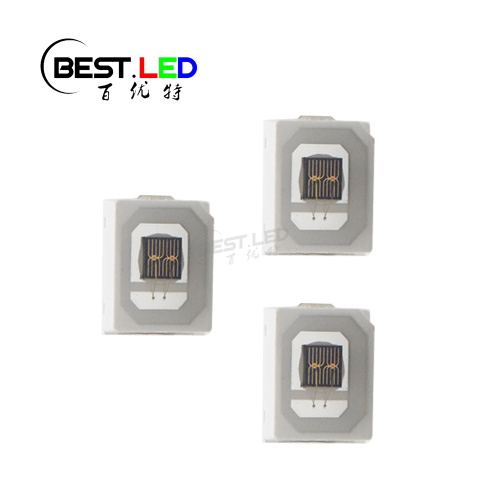

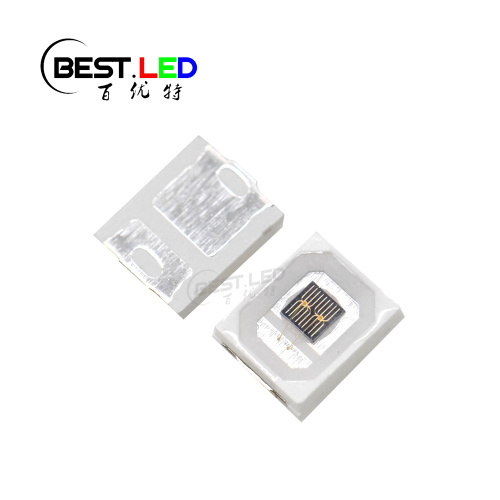

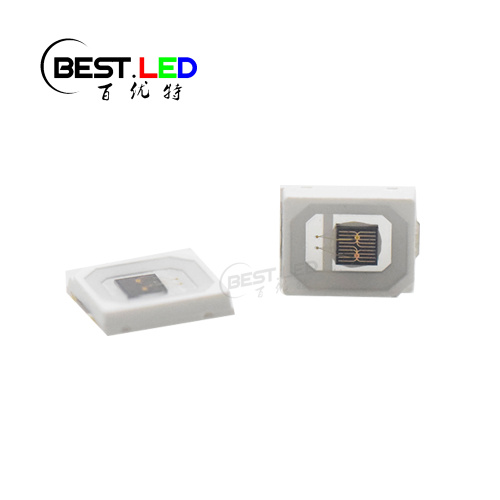

When we talk about the high power LED, people might thinking about 3535 SMD LED, 3838 SMD LED or those circular LED that with 8mm diameter. Which all have a big size. When you need a small size of High Power IR LED, check with this 2835IRC120L42I1A. It's a 1200nm LED that package with 2835 SMD LED case, the size is 2.8mm x 3.5mm. Which is smaller than those 3535 LED ect. Samll size will more easy to fit with different project and save some space for the PCB board when you design it. Contact us for more detail about datasheet, weight of package, operation current for this IR LED.

1200nm High power LED 2835 LED Size:

* High power SMD LED are also available in 940nm LED, 850nm LED, 730nm LED and some far red infrared LED *

Electrical Parameters:

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Production of SMD LED 2835 LED:

HANDLING PRECAUTIONS:

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible Althouth its characteristiec significantly reduces thermal stress, it is more susceptible to damage by extemal mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated Led products. Failure to comply might lead to damage and premature failure of the led

1. Handle the component along the side surfaces by using forceps or appropriate tools.

2, Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

3, Do not stack together assembled PCBS containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry.

4, 4-A The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks;

    4-B A plible material is suggested for the nozzle tip to avoid acratching or damaging the LED surface during pickup.

    4-C The dimension of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production;

    4-D As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plationg of leadframe. Special care should be taken if an LED with silicone encapsulation is to used near such substances.

5, Please aviod continued exposure to the condensing moisture environment and keep the product away from repid transitions in ambiemt temperature.

6, Product in the original sealed package is recommended to be assembled within 24 hours of opening.
