Dome Lens Deep Red 700nm LED Emitter 60-Degree

Dome Lens Deep Red 700nm LED Emitter 60-Degree

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	EXW,FOB,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shenzhen

Product Description

IR LED 700nm LED Emitter;

Because people can still see the red light when 700nm LED is working, sometime they also name this 700nm IR LED as Red LED. When it's packaged by SMD LED, it's a 700nm SMD LED. And when it's packaged by a LED Lamps type, it's a 700nm Through-hole LED. In this 2835FIRC70L14I60A60, we produce it with a SMD LED frame that have a dome lens on the top. So that this IR LED have a 60 degree viewing angle and higher radiation than common 700nm SMD LED. 700nm LED are widely use in medical area and LED grow light. That wavelength can do lots of help in plants grow. If you looking for 700nm LED for your project, check with this dome lens SMD LED.

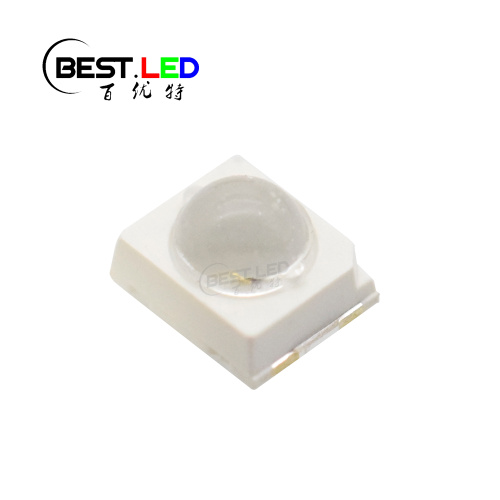

2835FIRC70L14I60A60 Dome Lens Deep Red 700nm LED Emitter 60-Degree

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	1000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	2000	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Rating	Unit
Forward Current	IF	60	mA
Forward Voltage	V	1.7-2.0	v
Luminous Intensity	IV	60	mW
Wavelength	λP	700	nm
Packing	Piece	2000	Reel
Viewing angle	2θ1/2	60	Deg
