Bi-Color LED Lamps

Z309URTGC

  One single color`s LED cannot meet your requirement? Is it possible to put two color in the same through-hole LED or SMD LED? Yes, of course!

For Bi-color LED lamp, there will have three kinds of them in total: common anode, common cathode and non-polarity.

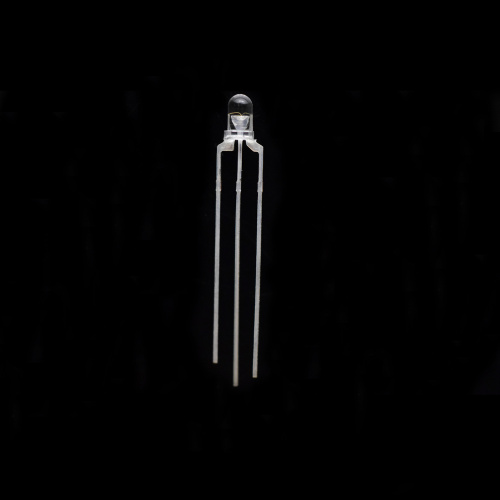

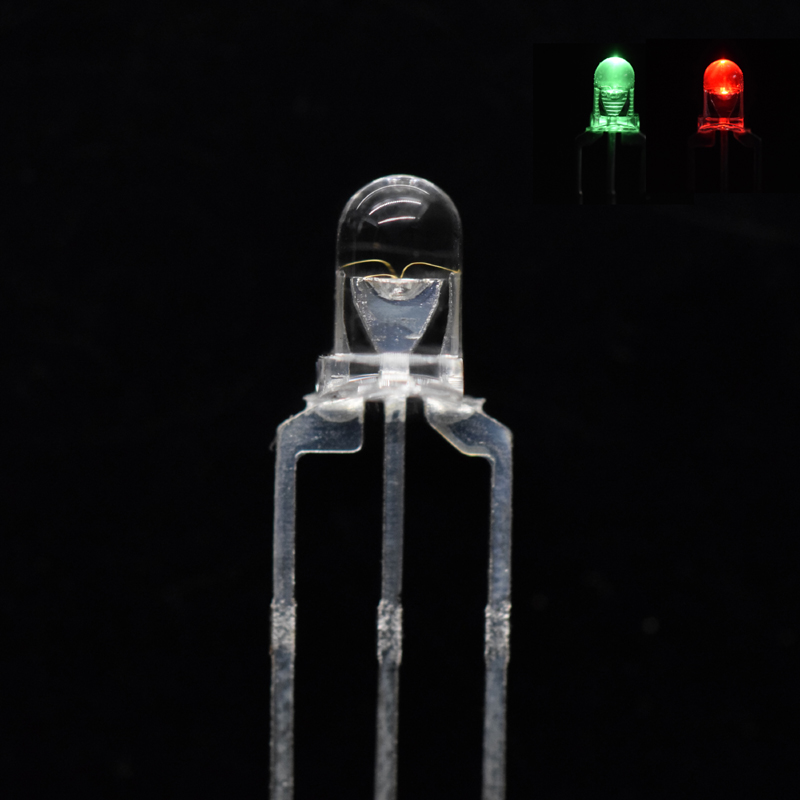

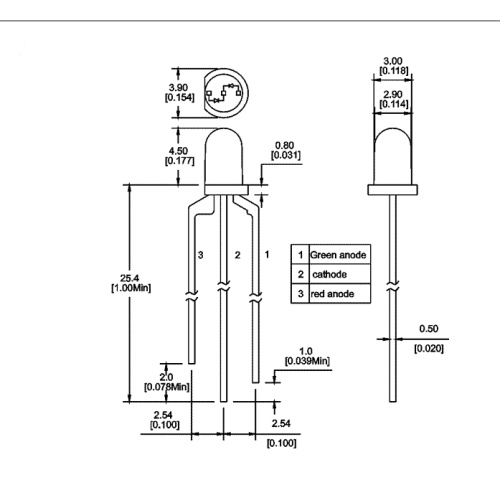

Normally, Bi-color LED lamps with common anode or common cathode will have three leads and the middle one is common port. The structure will basically like this: adding an other color`s LED chip in the side of original chip, then they can share the polarity. All we need to do is connect it with the other side by gold wire and other lead. Then the bi-color through-hole LED done~

Brightness:

Red: 500-1000 mcd        2.0-2.3V        620-625nm

Green:100-300 mcd      2.0-2.5V        568-572nm

This Bi-color LED case cannot package two LED chips inside, so if you need other color in it, like color of 660nm LED, 400nm LED, 520nm LED, 495nm LED, 680nm LED, IR LED ect are acceptable. Just feel free to let us know.

-Detail of Welding Material-

*High purity gold wire for welding*
