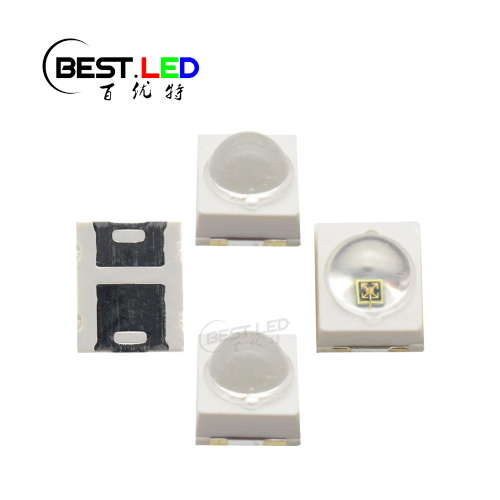

Super Bright 60-Degree Amber LED 2835 SMD 595nm

Super Bright 60-Degree Amber LED 2835 SMD 595nm

$0.06

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000000000000
Supply Ability:	10000000000
Payment Type:	T/T,L/C,Paypal
Incoterm:	FOB,CIF,EXW,FCA,DDU,Express Delivery
Certificate:	ISO:9001
HS Code:	8541410000
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Product Description

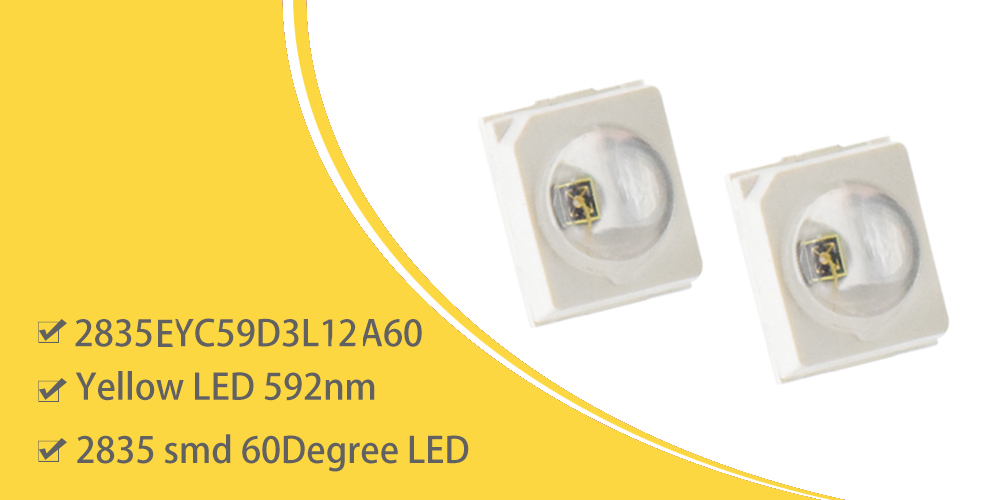

What's the different between 2835EYC59D3L12A60 and 2935FYC59D3L14A60?

From the chip size, the formal one got 12mil LED chip inside and the later got 14mil LED chip size in the middle. As we know the bigger chip the bigger operation current, at the same operation currentunder(within the standard of SMD LED). Bigger chip will got better stable performance normally. And the bigger SMD LED chip will got higher brightness normally at the same lighting current. But in this 2835EYC59D3L12A60 Domed LEDs, we package a double electrode chip inside this 2835 SMD LED package. Which will make it got better stable performance than 14mil.

Size of Amber LED:

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Rating	Unit
Forward Current	IF	60	mA
Forward Voltage	V	2.2-2.6	v
Luminous Intensity	IV	3000	mcd
Wavelength	λP	595	nm
Packing	Piece	2000	Reel
Viewing angle	2θ1/2	60	Deg
