IR LED 980nm 3014 SMD LED Side View

Get Latest Price

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

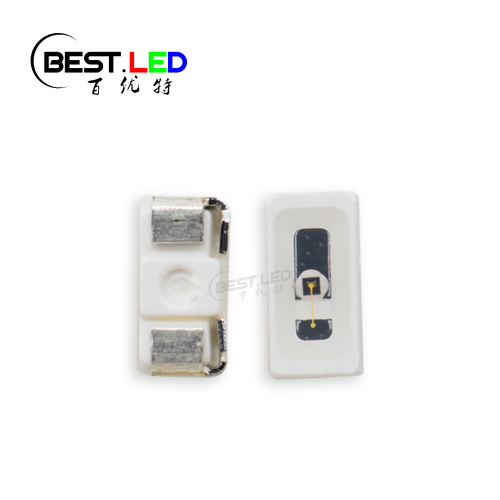

3014 Side Emitting SMD LED 980nm LED;

980nm wavelength are one of color of this 3014 side emitting diode. Actually, this 3014 SMD LED are also availabel in red, green, yellow green, blue, amber, white, purple colors. In addition, this 3014 side emitting SMD LED are not just the side view LED, it can be the same as those top view LED at the same becuase there are also have a welding pad on the bottom of SMD LED. So we also name this 3014 SMD LED as dual use SMD LED. Now we also put a 980nm chip inside, it will also be a IR LED at the same time. If you need some 980nm LED that emits light from side and from the top, check with this 3015IRC-98L14I100

3015FIRC-98L14I100 IR LED 980nm 3014 SMD LED Side View

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Forward Current	IF	100	mA
Forward Voltage	V	1.1-1.5V	V
Luminous Intensity	IV	20-35	mw/sr
Wavelength	λP	980nm	nm
Packing	Piece	4000	reel
Vewing angle	2θ1/2	120	Deg
