- 940nm LED -

132IRC-94L12I60

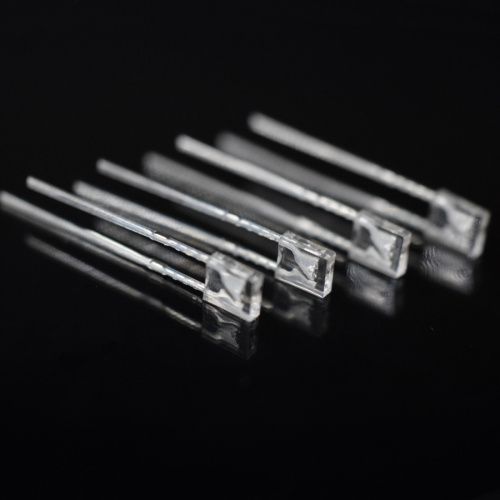

For some application, people might just need a rectangle radiation area. As we know, the LED lens can change the lighting result for the LED chip. If we just light up a little LED chip, the lighting spot will be a round circle shape. When we package it with round top through-hole LED, then the lighting spot will be more concentrated but still look as a bright circle lighting spot. If you need to change the lighting spot, then the shape of the LED lens will be a key point. The lighting spot will be changed when it through the lens. That's why when we packaged this LED with rectangle, it will have a rectangle lighting or radiation area. Do you need some rectangle 940nm through-hole LED for your project? Contact us for more detail.

940 nm LED

- Size: 1mm*3mm*1mm High

- Pin length:

- Color: 940nm LED

- Type: clear

- Chip brand:e Epistar

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

940nm LED

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

rameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	500mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee	3		7	mW/sr	IF=20mA
		10	20			IF=50mA
		18		30		IF=100mA
Viewing Angle	2q1/2		120		deg	IF=50mA
Peak Wavelength	λp	930	940	960	nm	IF=50mA
Spectral Bandwidth	Dl		50		nm	IF=50mA
Forward Voltage	VF	1.2	1.3	1.5	V	IF=20mA
		1.3	1.4	1.7		IF=50mA
		1.4	1.5	1.9		IF=100mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
