- 940nm LED -

232IRC-94L12I60

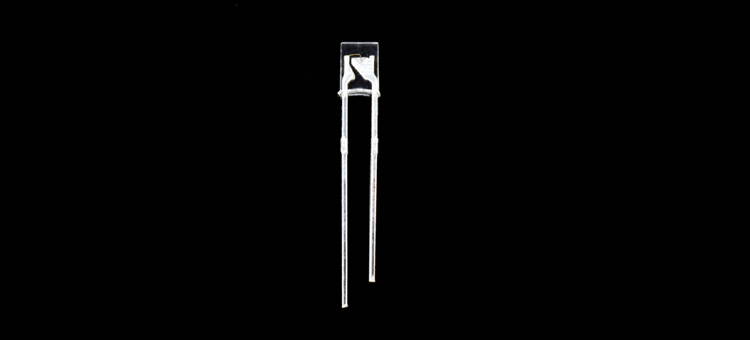

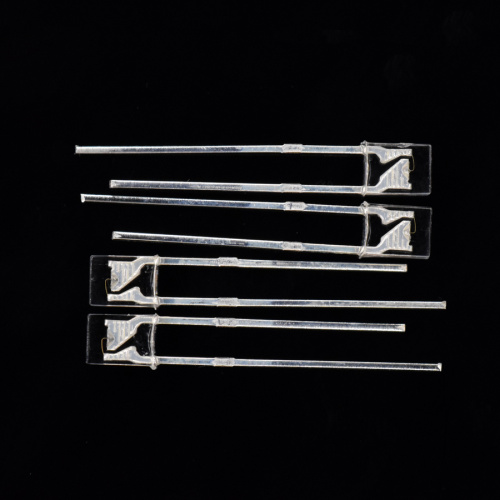

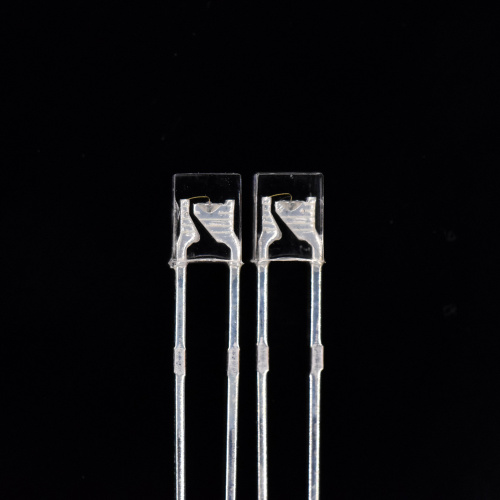

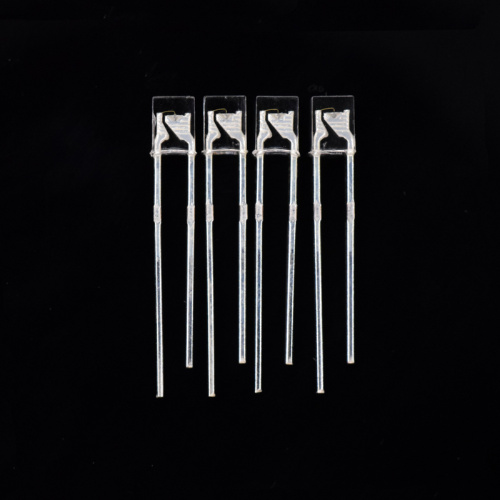

940nm LED through-hole 2*3*2mm size are easy to fit with different small PCB board or some small tiny circuit for your application or project. Since we can also packaged some different LED bare die with different wavelength inside of this 2*3*2mm through-hole LED case, like 850nm ect. People might hard to choose which wavelength will be better for their project? The main advantage of the 940nm LED is that it's totally invisible when it's working. Which means the light source doesn't emit any glow. Do you need something IR LED like this one? Contact us for more detail about it!

940nm LED

- Size: 2mm*3mm*4mm High

- Pin length: 19mm/17mm

- Color: 940nm LED

- Lens type: Clear

- Chip brand: Epistar

- Different color are available

- Warranty: 5 Years

- Different wavelength are available

- RoHS, REACH, EN62471

- Uniform light output

- Low Power consumption

- Long life-solid state reliability

- Anti UV epoxy resin package

- High temperature resistance

- Dimension Parameters -

232 led

. All dimensions are in millimeters ; 2. Tolerance is ± 0.10 mm unless otherwise noted.

*This case are also available for UV LED, Yellow LED, White LED, blue through-hole LED, red through-hole LED, IR LED ect.*

- Emitting Color -

* Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	500mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee	3		7	mW/sr	IF=20mA
		10	20			IF=50mA
		18		30		IF=100mA
Viewing Angle	2q1/2		120		deg	IF=50mA
Peak Wavelength	λp	930	940	960	nm	IF=50mA
Spectral Bandwidth	Dl		50		nm	IF=50mA
Forward Voltage	VF	1.2	1.3	1.5	V	IF=20mA
		1.3	1.4	1.7		IF=50mA
		1.4	1.5	1.9		IF=100mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
