940nm LED 5050 SMD LED 3-Chips 0.3W

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 940nm LED-

5050IRC-94L10I90

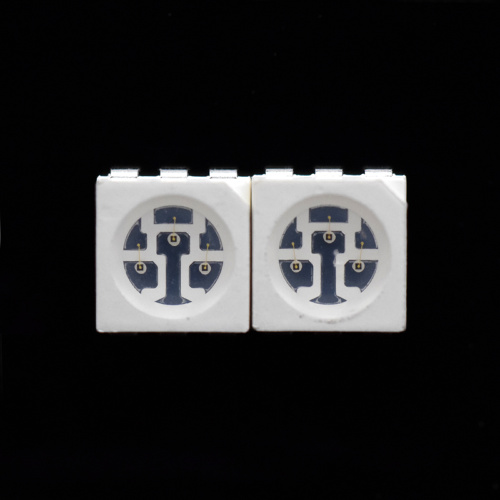

As you can see in the pictureL for these 5050 SMD LED, there have three position for the LED chip. For some application, there don't need much high power LED for working. Sometime we just need some small power 940nm LED for emitting some infrared radiation. In order to save the cost and produce some uniform radiation light, we usually packaged three small chip into the 5050 SMD LED case, which got SMD LED in the bottom of the case. There also have 6 pins on the SMD case and each side will got three pins. Each LED chip are independently, which means you can control the working number of the LED. Do you need some SMD LED 3 chips with 940nm LED? Contact us for more detail!

5050 smd ir led

- Size: 5.0*5.0*1.3mm

- Chip Number: 3 chips

- Color: 940nm LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity mark cathode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters-

5050 led IR 3CHIPS

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

940nm 3chips ir led

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	140mw
Pulse Forward Current	IFP	900mA
Forward Current	IF	90mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.1	1.2	1.3	V	IF=20mA*3
		1.2	1.3	1.5	V	IF=50mA*3
		1.4		1.9	V	IF=100mA*3
Radiant Intensity	IE		4	11	mW/sr	IF=20mA*3
		17	20	35		IF=50mA*3
			51			IF=100mA*3
Peak Wavelength	λP	930	940	950	nm	IF=20mA*3
Half Width	Dl		45		nm	IF=20mA
Viewing Half Angle	2q1/2		120		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
