870nm Infrared LED 2835 SMD IR LED

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 2835 SMD LED -

2835FIRC-87L/14I100

870nm LED is a high speed, high radiation and high sensitivity infrared LED that can operate at 20mA current and 360um*360um 870nm chip size,AlGaAs/AlGaAs infrared chip.Shenzhen Best LED Opto-electronic Co.,Ltd offers 870nm IR emitter LED diode and more other IR LED: 670nm, 680nm, 690nm, 700nm, 710nm, 730nm, 760nm, 770nm, 810nm, 830nm, 850nm, 870nm, 890nm, 920nm, 940nm ect. There have also different way to package this 870nm LED such as: SMD LED (3528 SMD LED, 5730 SMD LED, 3014 SMD LED, 0603 SMD LED, 2835 SMD LED, 5050 SMD LED ect) and through-hole LED(5mm through-hole LED, 3mm through-hole LED ect). If your project need some LED have the performance that can handle high temperature working condition, then this 2835 SMD LED case will be better for 870nm and good for your project also. Contact us for more detail~

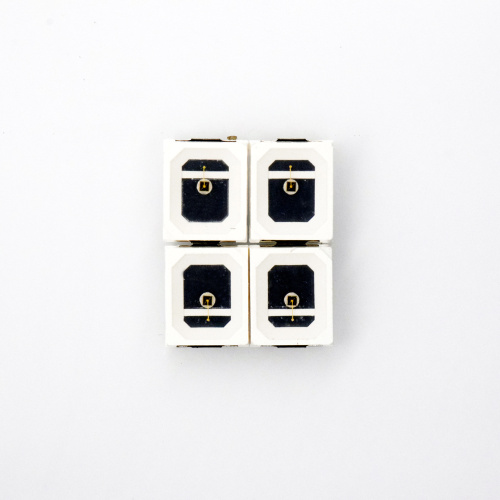

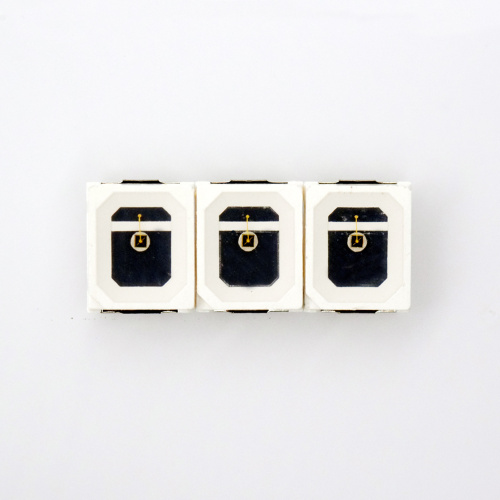

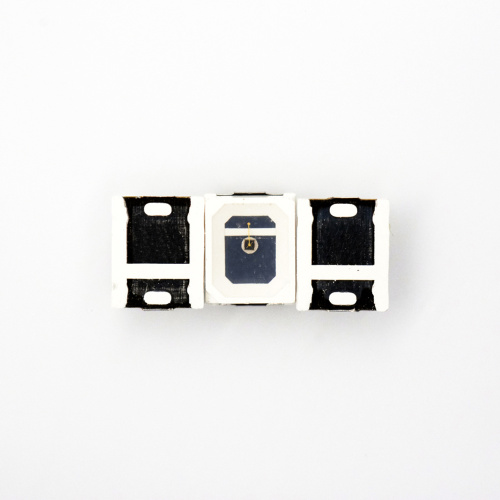

870nm LED - 2835 smd led packaged

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Color: 870nm LED

- Type: Surface mount device

- Chip brand: tyntek

- Nick mark: Anode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

2835 smd led

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	230mW
Pulse Forward Current	IFP	350mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.7		2.4	V	IF=100mA
Pulse Forward Voltage	VF		2.8		V	IFP=350mA
Radiant Intensity	IE	30		45	mw/sr	IF=100mA
Peak Wavelength	λP	860	870	875	nm	IF=100mA
Total Radiated Power	PO		4.6		mw	IF=100mA
Half Width	Dl		50		nm	IF=100mA
Viewing Half Angle	2q1/2		±60		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		25		ns	IF=100mA
Fall Time	Tf		13		ns	IF=100mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
