- 850nm LED -

3528FIRC-85L14I100

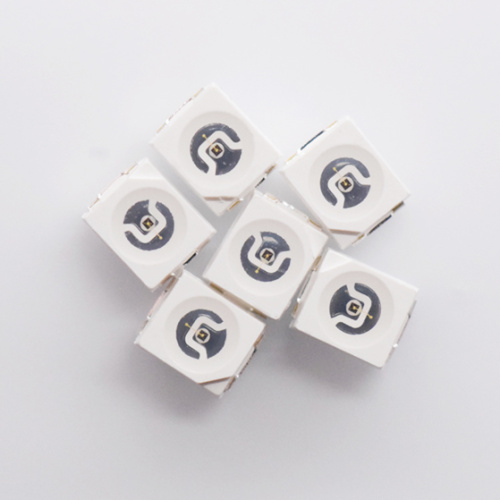

3528 SMD LED - 850nm LED is a small and simple infrared LED that emits invisible light when a electric current go through it. Compared with 940nm LED infrared LED, 850nm LED will emits a dim red spot, the light won't be partiularly bright but you still can meet a little red spot in the middle of the SMD LED when it's working. Some people might want to ask what is the different between IR LED and normally LED? We will answer that question in our NEWS BAR. But for both of normally LED and IR LED, they all have the same good quality in low power requirement, high efficiency, long life and remote control.

-Dimension Parameters -

These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	500mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee		5	8	mw/sr	IF=20mA
		20		30		IF=50mA
		40		50		IF=100mA
Viewing Angle	2q1/2		120		deg	IF=50mA
Peak Wavelength	λp	850	855	865	nm	IF=50mA
Spectral Bandwidth	Dl		50		nm	IF=50mA
Forward Voltage	VF	1.2	1.35	1.6	V	IF=20mA
		1.3	1.55	1.7		IF=50mA
		1.6	1.7	2.0		IF=100mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -
