850nm LED 2*3*4mm Square Through-hole LED

850nm LED 234mm Square Through-hole LED

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 850nm LED -

232IRC-85L12I60

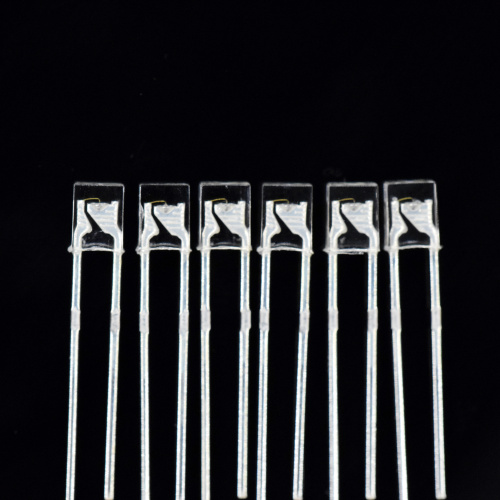

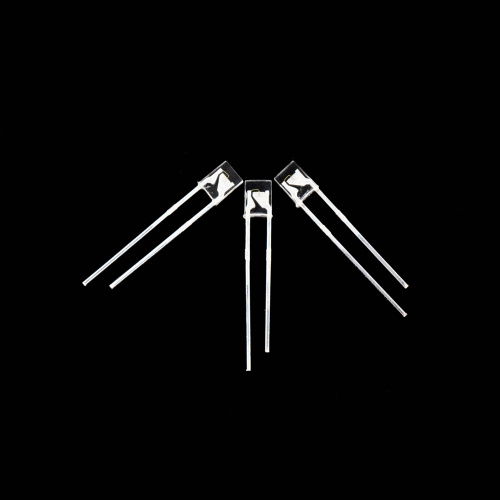

We packaged this 850nm infrared LED bare die with 2*3*2mm through-hole LED lens. These small clear lens can save a lots a space for your design in your PCB board. These 2*3*2mm through-hole LED have a rectangle flat top lens, which will make a rectangle radiation area. If you just need a little emitting area and just have a little space for the LED, then this one won't let you disappointment~

Low power consumption, long life solid state reliability and high temperature resistance are the most key point for this 850nm infrared LED. Do you need some small IR LED for your project? Contact us for more detail~

rectangle LED

- Size: 2mm*3mm*4mmHigh

- Pin length: 29mm

- Color: 850nm LED

- Lens type: Clear

- Chip brand: Epistar

- Different color are available

- Warranty: 5 Years

- Different wavelength are available

- RoHS, REACH, EN62471

- Uniform light output

- Low Power consumption

- Long life-solid state reliability

- Anti UV epoxy resin package

- High temperature resistance

- Dimension Parameters -

232 LED

. All dimensions are in millimeters ; 2. Tolerance is ± 0.10 mm unless otherwise noted.

*This case are also available for UV LED, Yellow LED, White LED, blue through-hole LED, red through-hole LED, IR LED ect.*

- Emitting Color -

* Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	500mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee	5		10	mW/sr	IF=20mA
		20	30			IF=50mA
		30		45		IF=100mA
Viewing Angle	2q1/2		120		deg	IF=50mA
Peak Wavelength	λp	840	850	860	nm	IF=50mA
Spectral Bandwidth	Dl		50		nm	IF=50mA
Forward Voltage	VF	1.3	1.5	1.6	V	IF=20mA
		1.4	1.5	1.7		IF=50mA
		1.6	1.7	1.9		IF=100mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
