850nm IR LED - 1206 Small SMD LED

Get Latest Price

Min. Order:: 6000 Piece/Pieces

Min. Order:: 6000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 850nm LED -

1206IRC-85L10I30

Is it other SMD LED are too big to use in your application? Contact us for it! 1206 is a very small SMD LED. And the size is 2．0*1．2mm. With this small size, you can install this IR LED with any little PCB board for your application. 850nm infrared LED are widely used in CCTV camera, IR LED system, or some other IR remove control system ect. Beside this 850nm infrared LED bare die, we can also package it with 940nm LED bare die. People might wondering what is the different between 850nm LED and 940nm LED? When both of this IR LED is working. We can see a red spot in 850nm IR LED in our naked eye, but we cannot see any thing on 940nm LED.

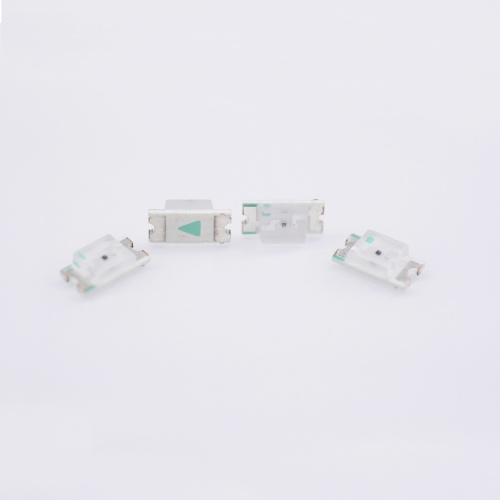

850nm smd LED

- Size: 2.0*1.25*0.8mm

- Chip Number: 1 chip

- Color: 850nm LED

- Type: Surface mount device

- Chip brand: TYNTEK

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

1206 smd ir 850nm size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

1206SMD 850nm IR LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	50mW
Pulse Forward Current	IFP	300mA
Forward Current	IF	30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Temperature	Topr	-40 - +80°C
Storage Temperature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Radiant Intensity

Ee

1.3

2.8

mW/sr

IF=20mA

3

8

IF=50mA

Viewing Angle

2q1/2

140

deg

IF=100mA

Peak Wavelength

λp

840

850

nm

IF=100mA

Spectral Bandwidth

Dl

50

nm

IF=100mA

Forward Voltage

VF

1.3

1.4

1.6

V

IF=20mA

1.4

1.5

1.8

IF=50mA

Reverse Current

IR

5

uA

VR=5V

Radiant Intensity

Ee

1.3

2.8

mW/sr

IF=20mA

3

8

IF=50mA

*Luminous Intensity is measured by ZWL600.

*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Production -

- Use -

SMD LED Use of attention

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

850nm Small LED , 850nm Mini LED , Smallest SMD IR LED

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee	1.3		2.8	mW/sr	IF=20mA
Radiant Intensity	Ee	3		8	mW/sr	IF=50mA
Viewing Angle	2q1/2		140		deg	IF=100mA
Peak Wavelength	λp	840	850		nm	IF=100mA
Spectral Bandwidth	Dl		50		nm	IF=100mA
Forward Voltage	VF	1.3	1.4	1.6	V	IF=20mA
Forward Voltage	VF	1.4	1.5	1.8	V	IF=50mA
Reverse Current	IR			5	uA	VR=5V
Radiant Intensity	Ee	1.3		2.8	mW/sr	IF=20mA
Radiant Intensity	Ee	3		8	mW/sr	IF=50mA
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
