830nm LED 2835 SMD IR LED 0.3W

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 2835 SMD LED -

2835FIRC-83L/14I100

830 nm infrared light can penetrate the skin deeply, stimulate the secretion of collagen and blood circulation. 830 nm far infrared light, also known as soft laser, which can penetrate the skin 3.2-3.4 mm directly to the dermis, activate the blood circulation of the dermis, enhance the cell vitality of the dermis, provide more oxygen and red blood cells for the skin, and at the same time and provide more oxygen and red blood cells for the skin. It can stimulate collagen to secrete more collagen cells, which is beyond the reach of other LED infrared light. 830nm LED is a infrared LED that you can see a red spot when it is working. Which have a deeper red color and brighter brightness than 940nm and 850nm infrared LED. If you need some 830nm infrared LED for your project. This one won't let you disappointment.

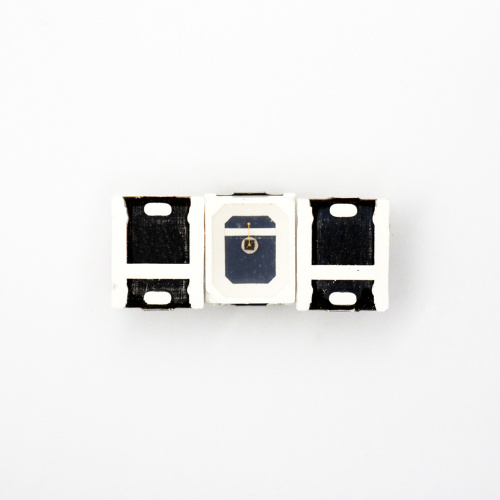

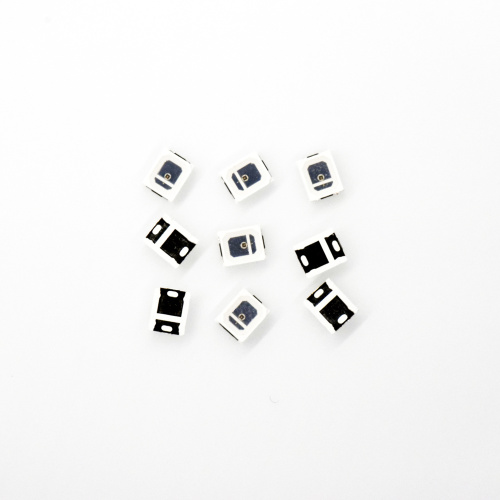

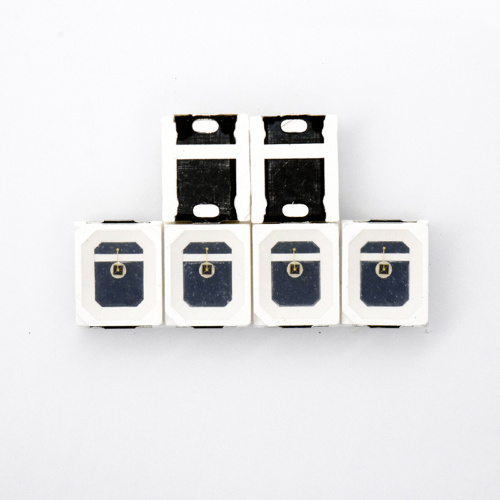

830nm LED - 2835 smd led

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Color: 830nm LED

- Type: Surface mount device

- Chip brand: customize

- Nick mark: Anode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

Customized 830nm IR LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	230mW
Pulse Forward Current	IFP	350mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.7		2.4	V	IF=100mA
Pulse Forward Voltage	VF		2.8		V	IFP=350mA
Radiant Intensity	IE	35		55	mw/sr	IF=100mA
Peak Wavelength	λP	825	830	840	nm	IF=100mA
Total Radiated Power	PO		4.6		mw	IF=100mA
Half Width	Dl		50		nm	IF=100mA
Viewing Half Angle	2q1/2		±60		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		25		ns	IF=100mA
Fall Time	Tf		13		ns	IF=100mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
