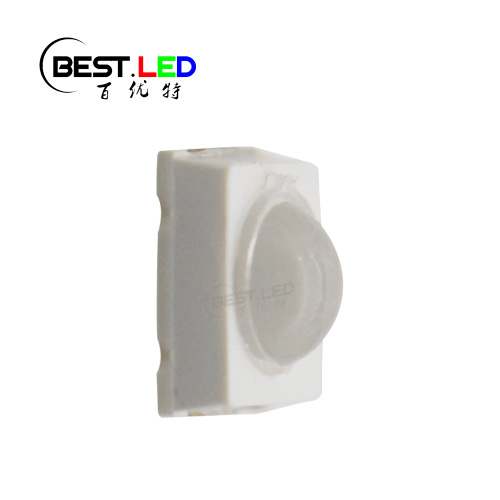

IR LED 2835 730nm dome lens

2835 SMD LED has red, yellow, blue and green several colors. Which will make this LED with 625nm LED, 590nm Amber LED, 465nm LED and 520nm LED ect. Now on the market to see a variety of models have these colors, but not only the colors, there is infrared will be widely used, where to use ir led, ir led can be used in many places, different wavelengths and voltages, current used in different products. This 2835 ir led the wavelength is 730nm. It is a kind of infrared. And the forward current is 60mA,th forward voltage is 1.7-2.0V. Than it can emit up to 50mw of brightness. It can be used in night vision, mobile phones, TVS and other products, we have other models of infrared,need to contact us.

Parameter	Symbol	Rating	Unit
Forward Current	IF	60	mA
Forward Voltage	V	1.7-2.0	V
Luminous Intensity	IV	50	mw
Wavelength	λD	730	nm
Viewing angle	2θ1/2	90	deg

*Luminous Intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of deviece.

Notes:

1.All dimensions are in millimeters;

2.Tolerance is ± 0.10nm unless otherwise noted.

3.The mark is Cathode.
