680nm Deep Red LED - 3020 SMD LED

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 680nm LED -

3020IRC-68L

As we know, there will have some symbol will show in the LED datasheet : "λp" and "λD". Then what is that mean? Usually you see a beam of light, it is not a single wavelength of light, it is composed of a combination of many wavelengths. The energy of the wavelength of light is larger than that of other wavelengths, then this wavelength is the peak wavelength of the beam. The wavelength distribution of each wavelength of light in this beam is not necessarily symmetrical with the boundary of lambda λp. What we feel is the comprehensive result of the action of each wavelength. It corresponds to a single wavelength of light. The wavelength value is lambda λD. On the wavelength distribution curve, a vertical line between the abscissa and the curve divides the area under the curve into two equal sides. The vertical corresponding wavelength value is lambda λD.

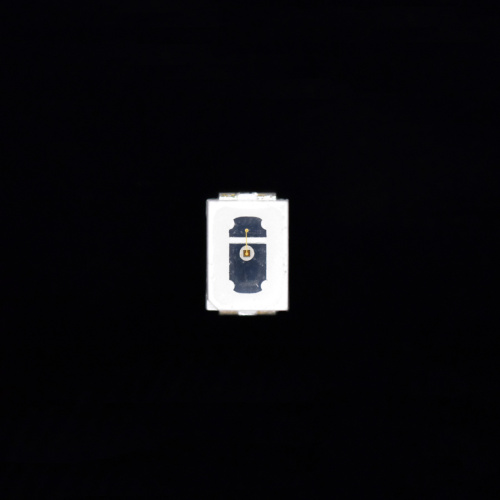

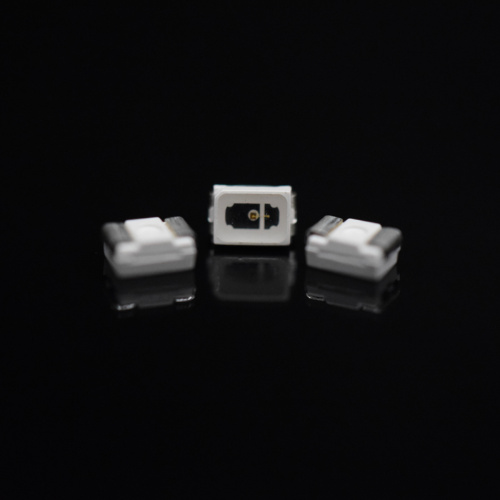

- Size: 3.0*2.0*1.3mm

- Chip Number: 1 chip

- Color: 680nm

- Type: Surface mount device

- Chip brand: EPISTAR

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

3020 smd 680nm ir led

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation

Pd

100mw

Pulse Forward Current

IFP

300mA

Forward Current

IF

50mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

3000v

Warranty

Time

5Years

Antistatic bag

Piece

2000Back

Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

1.7

1.9

2.4

V

IF=50mA

2.3

2.6

V

IF=100mA

3.0



V

IF=300mA

Luminous Flux

IV

0.5

lm

IF= 50mA

1

lm

IF=100mA

3

lm

IF=300mA

Luminous Power

PO



50



mw

IF=50mA

100



mw

IF=100mA

300



mw

IF=300mA

Peak Wavelength

λP



680

690

nm

IF=50mA

Half Width

Dl

25

nm

IF=50mA

Viewing Half Angle

2q1/2

±60

deg

IF=50mA

Reverse Current

IR

5

uA

VR=5V

Luminous Intensity is measured by ZWL600.

q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Related Red LED -

- Production -

- Use -

SMD LED Use of attention

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

680nm Red LED , 680nm IR LED , 680nm SMD LED

Parameter	Symbol	Rating
Power Dissipation	Pd	100mw
Pulse Forward Current	IFP	300mA
Forward Current	IF	50mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.7	1.9	2.4	V	IF=50mA
			2.3	2.6	V	IF=100mA
			3.0		V	IF=300mA
Luminous Flux	IV		0.5		lm	IF= 50mA
			1		lm	IF=100mA
			3		lm	IF=300mA
Luminous Power	PO		50		mw	IF=50mA
			100		mw	IF=100mA
			300		mw	IF=300mA
Peak Wavelength	λP		680	690	nm	IF=50mA
Half Width	Dl		25		nm	IF=50mA
Viewing Half Angle	2q1/2		±60		deg	IF=50mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
