660nm Red LED Chip 5730 SMD LED

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

660nm LED means the light emitting diode that with 660nm wavelength. But when we discusse about the 660nm LED, it's about the peak wavelength. And each single LED have their own wavelength. For whole batch of red SMD LED in 660nm. There will have a range on it. In this 5730FR667P8L14P2, The range is 665nm to 670nm. 665nm LED lights are commonly used in LED grow lights. This specific wavelength falls within the red spectrum and is known to promote photosynthesis and flowering in plants. It helps in the absorption of light energy needed for plant growth and development. Therefore, 665nm LED lights are widely used in indoor gardening and commercial horticulture for cultivating various types of plants.

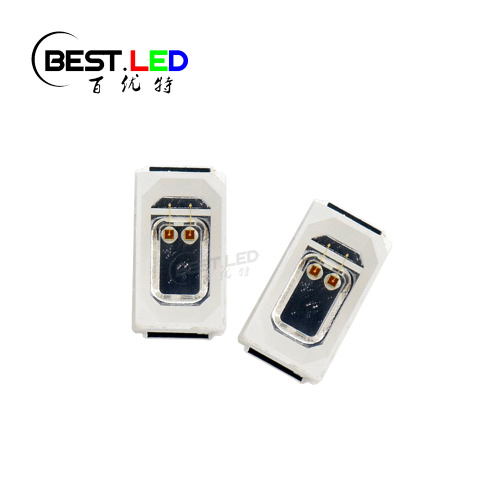

5730 SMD LED 665nm 660nm red led

5730 Red SMD LED Features:

Dimension: 5.7*3.0mm;

Color: Deep Red LED Light;

Lens type: Transparent epoxy;

High reliability and high radiation intersity;

size of Deep Red 660nm LEDs

*This package size are also available in Amber LED, UV LED, IR LED, Yellow LED*

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Reverse Voltage	VR	5	V
Junction Temperature	Tj	115	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	2000	V
Service lige under normal conditions	Time	50000	H
Warranty	Time	2	Years
Antistatic bag	Piece	1000	Back

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.0	-	2.6	V	IF=150mA
Brightness	IE	8	-	10	LM	IF=150mA
Peak Wavelength	λP	667			nm	IF=150mA
Half Width	λ△		50		nm	IF=150mA
Viewing Half Angle	θ		120		deg	IF=150mA
Reverse Current	IR			5	uA	VR=5

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
