0.5W 660nm Red LED 5730 SMD LED Chip

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

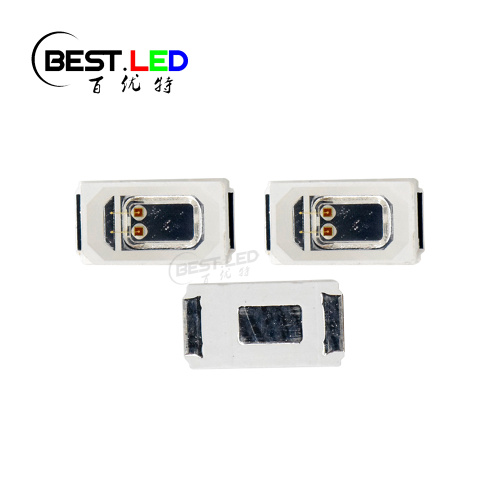

Normally there will just a single LED chip inside the SMD LED package. From the picture as follow, we can see there are two chips inside the 5730 SMD LED package, the part number is 5730FRC668P8L14P2. Which is a 660nm LED and it's light-emitting diode that emits light with a wavelength of 660 nanometers. This specific wavelength falls within the red spectrum of light. SMD stands for Surface Mount Device, which refers to the packaging technology used for the LED. SMD LED are small and compact, making them suitable for various applications such as lighting, displays, and indicators. People mostly use this 660nm LED for their LED grow light application, which is a type of lighting system specifically designed for indoor gardening and plant cultivation. They provide the necessary light spectrum and intensity required for plants to grow and thrive. The light of 660nm wavelength will help a lot in this case.

660nm LED Chip 5730 SMD LED

5730 Red SMD LED Features:

Dimension: 5.7*3.0mm;

Color: Deep Red LED Light;

Lens type: Transparent epoxy;

High reliability and high radiation intersity;

size of 660nm LED Chip

*This package size are also available in Amber LED, UV LED, IR LED, Yellow LED*

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Reverse Voltage	VR	5	V
Junction Temperature	Tj	115	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	2000	V
Service lige under normal conditions	Time	50000	H
Warranty	Time	2	Years
Antistatic bag	Piece	1000	Back

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.0	-	2.6	V	IF=150mA
Brightness	IE	8	-	10	LM	IF=150mA
Peak Wavelength	λP	668			nm	IF=150mA
Half Width	λ△		50		nm	IF=150mA
Viewing Half Angle	θ		120		deg	IF=150mA
Reverse Current	IR			5	uA	VR=5

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
