5730 SMD LED Chip 660nm for Grow Light

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

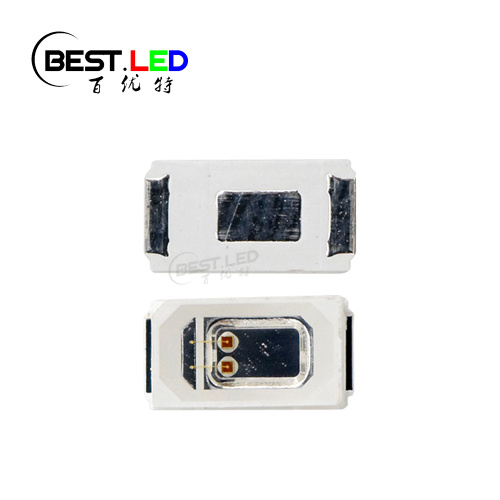

Different with common green SMD LED, amber LED, Pink LED or UV LED. When we talk about the 660nm LED, it's about the peak wavelength not the dominant wavelength. In this 5730FRC666P8L14P2, there are 2 chips of 660nm LED inside the package. Which will double the radiation of lights and operation current. So this deep Red SMD LED will offer brightness level on 8-10lm when we pass the 150mA operation current to light it up. With the 660nm wavelength, this SMD LED are able to use in kinds of application such as horticulture, phototherapy, aquarium ilghting, medical devices, cosmetic treatments and secientific research ect. If you going to need some of 660nm LED for your project, just feel free to contact us know~

5730 SMD LED 660nm LED wavelength

5730 Red SMD LED Features:

Dimension: 5.7*3.0mm;

Color: Deep Red LED Light;

Lens type: Transparent epoxy;

High reliability and high radiation intersity;

size of 660nm SMD LED Chips 5730 SMD LED

*This package size are also available in Amber LED, UV LED, IR LED, Yellow LED*

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Reverse Voltage	VR	5	V
Junction Temperature	Tj	115	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	2000	V
Service lige under normal conditions	Time	50000	H
Warranty	Time	2	Years
Antistatic bag	Piece	1000	Back

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.0	-	2.6	V	IF=150mA
Brightness	IE	8	-	10	LM	IF=150mA
Peak Wavelength	λP	666			nm	IF=150mA
Half Width	λ△		50		nm	IF=150mA
Viewing Half Angle	θ		120		deg	IF=150mA
Reverse Current	IR			5	uA	VR=5

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
