Product Description

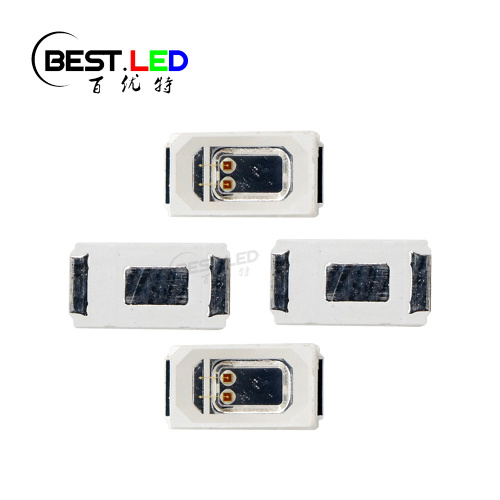

5730FRC665P8L14P2 is a SMD LED that with 2 chips of 660nm LED inside. 5730 SMD LED is a type of surface mount LED that measures 5.7mm x 3.0mm in size. It is commonly used in various lighting applications, including backlighting, signage, and general illumination.
The 660nm wavelength refers to the color of the LED emitter, which is in the deep red spectrum. This wavelength is often used in horticultural lighting for promoting plant growth and flowering.
Overall, the 5730 SMD LED with a 660nm wavelength is suitable for applications that require a deep red light source.This particular wavelength falls within the red spectrum of light. LEDs of this wavelength are often used in various applications, including horticulture lighting, medical treatments, and as indicators or decorative lighting.

660nm LED Emitter SMD

5730 Red SMD LED Features:

Dimension: 5.7*3.0mm;

Color: Deep Red LED Light;

Lens type: Transparent epoxy;

High reliability and high radiation intersity;

Size of Deep Red 660nm LED

*This package size are also available in Amber LED, UV LED, IR LED, Yellow LED*

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Reverse Voltage	VR	5	V
Junction Temperature	Tj	115	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	2000	V
Service lige under normal conditions	Time	50000	H
Warranty	Time	2	Years
Antistatic bag	Piece	1000	Back

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.0	-	2.6	V	IF=150mA
Brightness	IE	8	-	10	LM	IF=150mA
Peak Wavelength	λP	665			nm	IF=150mA
Half Width	λ△		50		nm	IF=150mA
Viewing Half Angle	θ		120		deg	IF=150mA
Reverse Current	IR			5	uA	VR=5

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
