Deep Red 660nm LED Chip for Grow Light

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

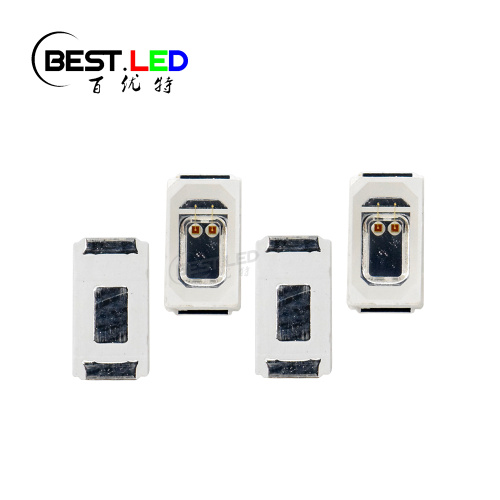

A 150mA 660nm SMD LED chip refers to a surface-mounted device LED chip that operates at a current of 150 milliamperes (mA) and emits light at a wavelength of 660 nanometers (nm). 5730FRC664P8L14P2 are one of this 660nm LED that package with 5730 SMD LED. This type of LED chip is commonly used in various applications such as signage, automotive lighting, horticulture lighting, and medical devices. The 660nm wavelength falls within the red spectrum of light, which is often used for its therapeutic and stimulating effects. The SMD package allows for easy installation on circuit boards and provides a compact and efficient lighting solution. It is important to note that the specifications and features of the 5730 660nm LED SMD may vary depending on the manufacturer and specific product model. Deep Red 660nm LED SMD 5730 led

5730 Red SMD LED Features:

Dimension: 5.7*3.0mm;

Color: Deep Red LED Light;

Lens type: Transparent epoxy;

High reliability and high radiation intersity;

Size of Deep Red 660nm LED Chip

*This package size are also available in Amber LED, UV LED, IR LED, Yellow LED*

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Reverse Voltage	VR	5	V
Junction Temperature	Tj	115	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	2000	V
Service lige under normal conditions	Time	50000	H
Warranty	Time	2	Years
Antistatic bag	Piece	1000	Back

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.0	-	2.6	V	IF=150mA
Brightness	IE	10	-	12	LM	IF=150mA
Peak Wavelength	λP	664			nm	IF=150mA
Half Width	λ△		50		nm	IF=150mA
Viewing Half Angle	θ		120		deg	IF=150mA
Reverse Current	IR			5	uA	VR=5

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
