- 660nm LED -

5050FRC-66L/14

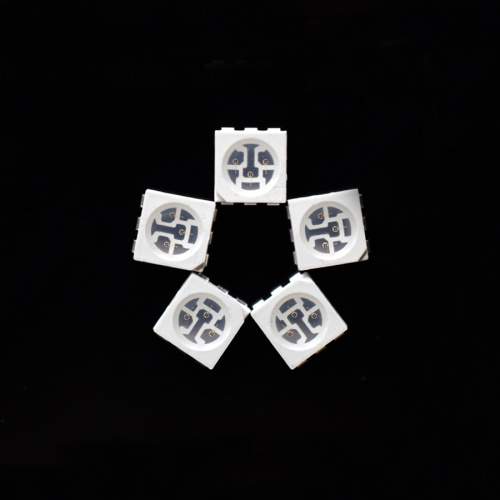

0.2W SMD LED 5050 3-chips 660nm LED is a deep red light emitting diode, which is widely used in beauty industry, plant growth, light supplement, or some other special applications. Because of the cost of 660nm LED, these red LED are not very popular in LED lighting project or LED Lamp. However, 660nm LED still getting popular because it's effect. Compare with the through-hole LED with 660nm, 660nm SMD LED will got a better performance on the heat dissipation. On the other hand, SMD LED also got a smaller size than through-hole LED, which is easier to fit with PCB board and automatic welding machine. As we know, there have three position in 5050 SMD LED. So that 5050 SMD LED case can packaged in 3 chips inside. For some project, just one single chip might cannot reach that requirement. In order to increase the output and radiation on one LED, we will package this with 3 same LED chip into 5050 SMD LED to reach stronger radiation or brightness. There have kinds of LED chip can be packaged in one 5050 SMD LED, which can be 3 different chip or 3 same chip. It's totally up to your requirement. If one single 660nm LED chip cannot meet your requirement, this one won't let you disappointment. Uniform light output, long life solid state reliability and low power consumption are all the advantage of this 3 chips 660nm SMD LED. Contact us for more detail about it~

        -Dimension Parameters-

         These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	180mw
Pulse Forward Current	IFP	300mA
Forward Current	IF	60mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.8	1.9	2.3	V	IF=60mA
		1.9	2.1	2.4	V	IF=180mA
		2.0	2.2	2.5	V	IF=300mA
Luminous Intensity	ΦVI	2.7		3.8	lm	IF=60mA
		9		13	lm	IF=180mA
		12		18	lm	IF=300mA
Lumiuous Power	PO	35		55	mw	IF=60mA
		120		180	mw	IF=180mA
		200		300	mw	IF=300mA
Peak Wavelength	λP	655	660	665	nm	IF=60mA
Dominant Wavelenth	λd	640	645		nm	IF=60mA
Half Width	Dl		17		nm	IF=60mA
Viewing Half Angle	2q1/2		±60		deg	IF=60mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
