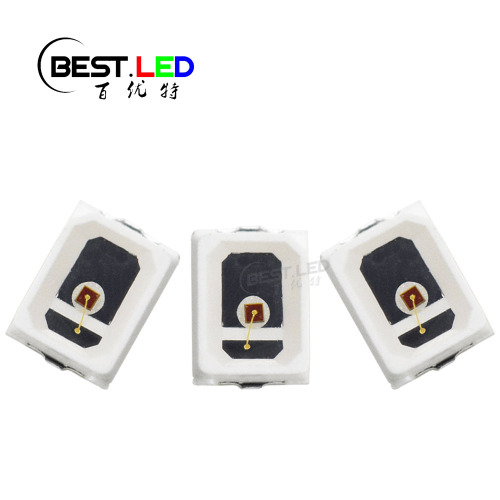

Red Orange 615nm LED Emitter 2016 SMD LED

Orange 615nm 2016 SMD LED

625nm LED, 635nm LED is the most common red LED that use in LED lighting project, such as LED billboard, LED decoration projet or some LED backlight project. 660nm LED are more popular in those LED grow light or red LED threapy. However, there are also have a orange LED that with wavelength on 615nm or 617nm. This red orange LED also have a beautiful color that also perfect for some LED decoration project. 2016FRC615D3L14 are one of this 615nm red orange LED. Compare with 600nm LED, the color of 615nm or 617nm LED will be redder. But compare with 635nm or 660nm LED, 617nm wavelength will be more orange. Contact us if you need some sample to test the color of LED.

Electrical Parameters:

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Size of 2016 SMD LED:

Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;

Production progress:

HANDLING PRECAUTIONS:

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible Althouth its characteristiec significantly reduces thermal stress, it is more susceptible to damage by extemal mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated Led products. Failure to comply might lead to damage and premature failure of the led

1. Handle the component along the side surfaces by using forceps or appropriate tools.

2, Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

3, Do not stack together assembled PCBS containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry.

4, 4-A The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks;

    4-B A plible material is suggested for the nozzle tip to avoid acratching or damaging the LED surface during pickup.

    4-C The dimension of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production;

    4-D As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plationg of leadframe. Special care should be taken if an LED with silicone encapsulation is to used near such substances.

5, Please aviod continued exposure to the condensing moisture environment and keep the product away from repid transitions in ambiemt temperature.

6, Product in the original sealed package is recommended to be assembled within 24 hours of opening.
