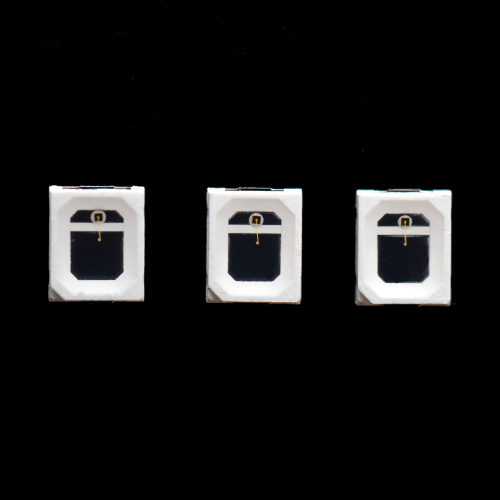

2835 Orange LED 617nm SMD LED Epistar Chip

2835 Orange LED 617nm SMD LED Epistar Chip

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 617nm LED -

2835IRC-617B-F

Do you need some orange LED? There we are~ This 2835 SMD LED was made by 617nm wavelength LED chip, this wavelength is between yellow and red, that's why this SMD LED can grow orange color. Orange color LED are widely used in decoration light, bill board, back light and some LED toy. 2835 SMD LED case got a perfect performance in dissipating the extra heat, so the high temperature issue won't bother with you in this case. If you need some orange LED to zing your project, we big fan of this 2835 orange LED~

617nm SMD LED

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Color: 617nm LED

- Type: Surface mount device

- Chip brand:Epistar

- Polarity Mark Cathode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

2835 SMD LED PLCC-2 Size .

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Electrical Parameters -

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	65	mw
Pulse Forward Current	IFP	100	mA
Forward voltage	IF	30	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	250	℃
Electro-Stati-Discharge(HBM)	ESD	1000	V
Service lige under normal conditions	Time	80000	H
Warranty	Time	5	Years
Antistatic bag	Piece	4000	Back

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Optical and Electrucal Characteristics(Tc=25℃)

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	1.8	2.0	2.4	V	IF=20mA
Luminous Intensity	IV	500		800	mcd	IF=20mA
Peak Wavelength	λP		620		nm	IF=20mA
Dominant Wavelength	λD	614	616	618	nm	IF=20mA
Half Width	λ△		15		nm	IF=20mA
Viewing Half Angle			±60		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5
Rise Time	tr		10		ns	IF=20mA
Fall Time	tf		10		ns	IF=20mA
