Orange 610nm LED 2835 LED Dome Lens 60-degree

Orange 610nm LED 2835 LED Dome Lens 60-degree

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	EXW,FOB,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shenzhen

Product Description

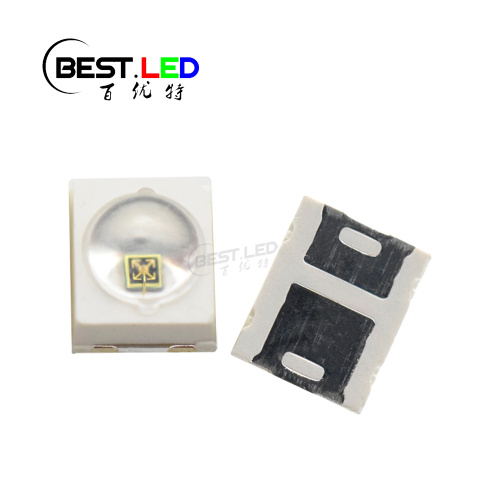

610nm SMD LED 2835 Dome Lens type;

2835FOC61D3L14A60 were packaged with surface mount technology. In this way, 610nm orange LED will have a water clear lens that provides 60 degree viewing beam angle for this LED. At the same time, 2835 SMD LED frame have size on 2.8*3.5*1.0mm, that will make this SMD LED much more flexibility for different project or device. Such as LED lighting project or some miniature devices. If you looking for some orange LED that with 60 degree for your project. Try with this one~

2835FOC61D3L14A60 Orange 610nm LED 2835 LED Dome Lens 60 degree 610nm light

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	1000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	2000	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Rating	Unit
Forward Current	IF	60	mA
Forward Voltage	V	2.2-2.6	v
Luminous Intensity	IV	3200	mcd
Wavelength	λP	610	nm
Packing	Piece	2000	Reel
Viewing angle	2θ1/2	60	Deg
