2012 SMD LED Yellow LED 590nm 0805 LED

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

-Yellow LED -

0805UYC

If the yellow LED is used in the transportation industry, it is used as a warning. The yellow LED has strong penetration ability and the human eye is more sensitive But it do available in high bright. In Chinese landscape lighting design, golden yellow light should be one of the popular colors. Why do Chinese people like to use golden yellow light for lighting? This may be because we are the descendants of the dragon, or more imperial tradition. This is an aesthetic way. We think golden light is a symbol of wealth and power. Of course, in our Oriental aesthetic, most people will think this is beauty, this is classic. Do you need some yellow LED for your project? Contact us for more detail~

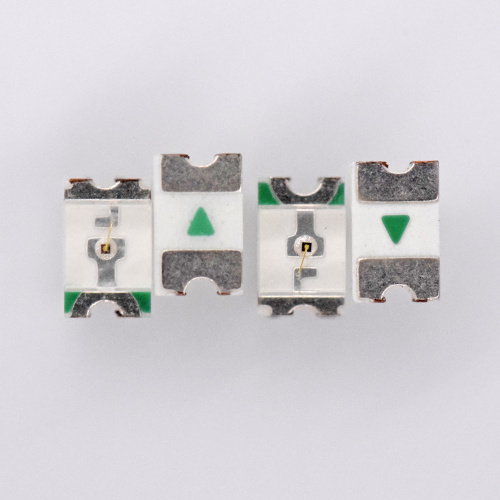

2012 SMD LED Yellow LED 0805 Small Size LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

1608SMD 590nm led

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	70mw
Pulse Forward Current	IFP	100mA
Forward Current	IF	30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.8	2.0	2.4	V	IF=20mA
Luminous Intensity	IV		60	120	mcd	IF=20mA
Peak Wavelength	λP		568		nm	IF=20mA
Dominant Wavelength	λd	588	590	592	nm	IF=20mA
Half Width	Dl		25		nm	IF=20mA
Viewing Half Angle	2q1/2		±60		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
