5mm Through-hole Yellow LED 595nm Orange LED

5mm Through-hole Yellow LED 595nm Orange LED

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 590nm LED -

503FYC-595L14S-20A

595nm Yellow LED are widely used in traffic light. 595nm will got more orange emitting color. With this 595nm LED, you also can call it as Amber LED instead of Yellow LED. These amber through-hole LED are widely used for traffic light, the high brightness and this color can easier to see and make people feel vigilant. 5mm through-hole yellow LED is a single-electrode chip that made by GaAsP material. This chip is a very stable LED chip, which can be used for more than 20 years. Contact us for the 5mm yellow LED, the quality won't let you disappointment!

595nm Through-hole LED

- Size: 5mm Diameter 8.7mm High

- Pin length: 29mm

- Color: Yellow LED

- Type: water clear

- Chip brand:epistar

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

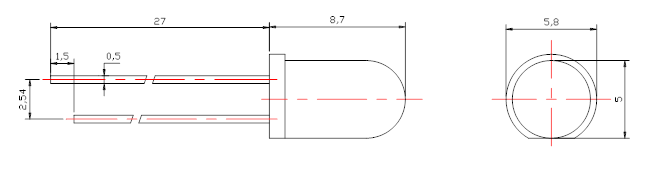

-Dimension Parameters -

5mm UV LED

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

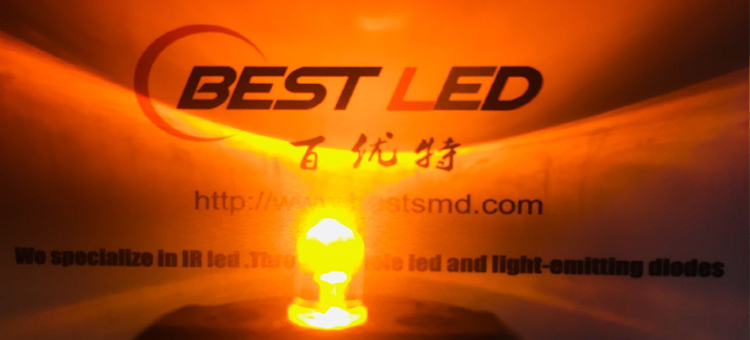

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	100	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	Ifp	100	mA
DC Forward Current	IF	30	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-25℃ - +80℃
Storage Temperature Range	Tstg	-40℃ - +80℃
Soldering Condition	Tsol	Reflow soldering: 260℃ For 5 Seconds Hand soldering: 300℃ For 3 Seconds
Electro-static-discharge(HBM)	ESD	100V
Service lige under normal confitions	Time	80000h
Warranty	Time	5 years
Packing	pcs	1003 per bag

Parameter Symbol Min. Type Max. Unit Test condition

Luminous Intensity IV 18800 --- 30000 mcd IF=20mA

Viewing Angle 2θ1/2 --- 20 --- deg IF=20mA

Peak Wavelength
--- 600 --- nm IF=20mA

Dominant wavelength
595 597 599 nm IF=20mA

Spectral Line Half Width
--- 20 --- nm IF=20mA

Forward Voltage
1.9 2.2 2.5 V IF=20mA

Reverse Current
--- --- 5 uA VR=5V

- Golden Wire Connection -

*In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package this LED with 1000pcs in a bag Normally. We also can package it as your requirement.

- Application -

- Related UV LED -

- Production -

- Use -

Through-hole LED Use of attention

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

595nm Orange LED , 5mm 595nm Orange LED , 5mm Through-hole Amber LED

Parameter	Symbol	Min.	Type	Max.	Unit	Test condition
Luminous Intensity	IV	18800	---	30000	mcd	IF=20mA
Viewing Angle	2θ1/2	---	20	---	deg	IF=20mA
Peak Wavelength		---	600	---	nm	IF=20mA
Dominant wavelength		595	597	599	nm	IF=20mA
Spectral Line Half Width		---	20	---	nm	IF=20mA
Forward Voltage		1.9	2.2	2.5	V	IF=20mA
Reverse Current		---	---	5	uA	VR=5V
