570nm LED 3mm Through-hole LED Lamps Lime Green

570nm LED 3mm Through-hole LED Lamps Lime Green

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 560nm LED -

302UGD

If you need some green LED with for your LED indicator. 302UGD is a green through-hole diffused green LED. This diffused 3mm Green Through-hole LED Lamps was packaged by 570-575nm LED bare die. Typically, those LED that with wavelength range on 570-575nm will not have that much brightness as 520nm green LED. When this 570nm green LED is working and you see this 570nm LED lamps directly, you won't feel any uncomfortable for your eyes. Compare with 520nm LED, 520nm green LED can reach ultra brightness so that when it is working and you see it by naked eyes, that brightness will blind you for a minute. These 302UGD 570nm LED common bright through-hole LED is perfect for LED indicator and DIY project. Do you need some of this small 3mm green LED for your project? Contact us now!

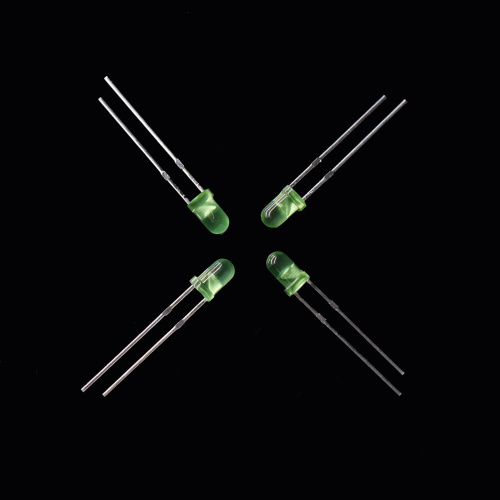

3mm lime green LED

- Size:3.0*5.3mm

- Chip Number: 1 chip

- Color:yellow green led

- Type: green diffused

- Chip brand: EPISTAR

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

302GD LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	75mw
Pulse Forward Current	IFP	100mA
Forward Current	IF	30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	100°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.8	2.1	2.4	V	IF=20mA
Luminous Intensity	IV	300		500	mcd	IF=20mA
Peak Wavelength	λP		575		nm	IF=20mA
Dominant Wavelength	λD	564	570	575	nm	IF=20mA
Half Width	Dl		21		nm	IF=20mA
Viewing Half Angle	2q1/2		±20		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		10		ns	IF=20mA
Fall Time	Tf		10		ns	IF=20mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
