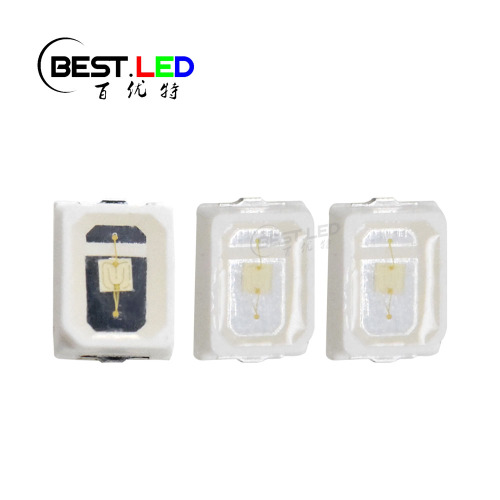

520nm Green LED 2016 SMD/SMT 0.2W 60mA

What is the material used in Green LED?

Chip, wire, lens and LED frame. LED chip of 520nm wavelength inside are the most important material for the SMD LED and DIP LED. There are actually have a mini circuit inside the SMD LED. So we also need the wire inside to connect the circuit for the chip. In this 2016LGC52D12L14, we using the 99.99% gold wire for the connection, which can make sure the LED have the stable lighting effec and low lighting decay. After we connect the current for LED, we need the high quality epoxy outside to cover and protect the chip and gold wire from the collision. And then it's about the LED frame. Which is also the key point because we need a good LED frame to make sure the SMD LED have a good heating performance.

Electrical Parameters:

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Green SMD LED 2016 SMD LED Demension;

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*

Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
