5050 RGB LED

5050RGB-30

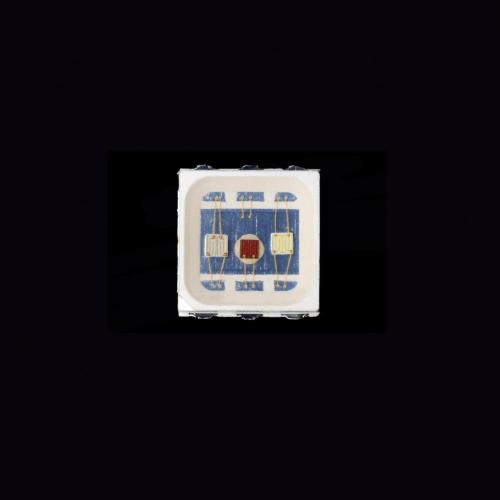

These RGB 5050 Surface-mount LEDs got six pins, which make them can be independent control for Green, Red or Blue. In addition, this High Power 5050 RGB LED have three little chip inside and they so close that they mix very nicely and brightly. Every single color can be drive with max current like 350mA and every single color with 1W that make the whole 5050 RGB LED with 3W.

We use high thermal conductivity glue to make these 3W SMT 5050 RGB LED have the ability to resist vulcanization, heat resistance and super heat dissipation

Brightness of 3W 5050 SMD LED:

            Red: 35-45LM              Voltage: 2.0-2.4V       Wavelength: 620-625nm

Green: 55-65LM           Voltage: 3.0-3.2V       Wavelength: 520-525nm

Ultra High Power 3W 5050 RGB SMD LED:

Size of High Power 5050 RGB SMD LED:

Anti-static bag Packaging High Power 5050 RGB SMD LED:

Application of High Power 5050 RGB SMD LED:

Related 5050 LED:

Certifications:

GB/T19001-2008/ISO9001:2008, RoHS, CE, SVHC (REACH), EN62471

Warranty:

Regard warranty, if the product is used in normal circumstances, we give FIVE years guarantee.

Our Services :

1.  We have our own independent R&D department on existing products for better maintenance; we still continue to develop high-tech products.

2.  Our products must pass strict quality control procedures.

3.  We have advanced production equipment.

4.  We use the raw materials are from domestic and foreign well-known brand manufacturers.

5.  After repeated tests before shipment.

Shipping Terms:

Our delivery go through DHL, Fedex, UPS, EMS etc.
