2835 Cyan SMD LED PLCC-2 LED Amazon

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

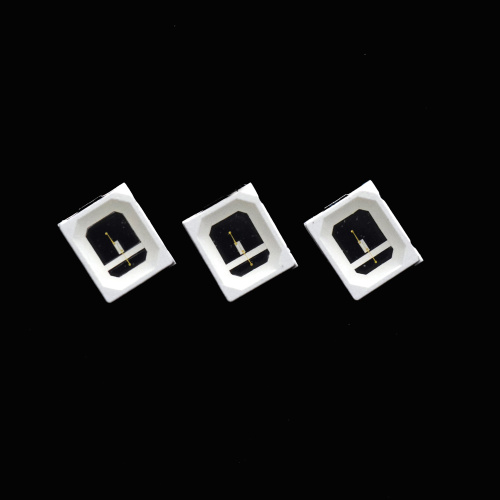

- 2835 SMD LED -

2835PGC-495L

Do you need some cyan SMD LED for your application? Please check this 2835PGC-495L SMD LED. 495nm is a cyan LED 2835PGC-495L is a SMD LED that packaged by 495nm LED bare die, which is a green SMD LED. These green SMD LED have a special and beautiful color. Kinds of like Tiffany Blue box's color. If you need some special green SMD LED for your project, 2835PGC-495L is that you cannot go wrong with. On the other hand, this SMD LED size is 2.8*3.5*0.8mm, which is commonly used in many projects, models, LED back light and nearly every other project that you can think of. They are also used for custom projects with this popular size. It can fit in most all spaces, the trait that sets this LED apart form others in a similar category is that it is a wide angle and have beautiful color. This means that the light is more spared out and can zing your project with a gorgeous color. Do you want to zing your project? Contact us now! Cyan LED

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Color: 495nm LED

- Type: Surface mount device

- Chip brand: Tekcore

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

led size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	100mw
Pulse Forward Current	IFP	100mA
Forward Current	IF	30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	100°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	2.8	3.0	3.4	V	IF=20mA
Luminous Intensity	IV	1300		1800	mcd	IF=20mA
Peak Wavelength	λP		500		nm	IF=20mA
Dominant Wavelength	λD	495		500	nm	IF=20mA
Half Width	Dl		22		nm	IF=20mA
Viewing Half Angle	2q1/2		±60		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		10		ns	IF=20mA
Fall Time	Tf		10		ns	IF=20mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
