450nm LED 3mm Round Top Diffused Blue LED

450nm LED 3mm Round Top Diffused Blue LED

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000000/Week
Supply Ability:	10000000/Week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	ISO:9001
HS Code:	8541401000
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

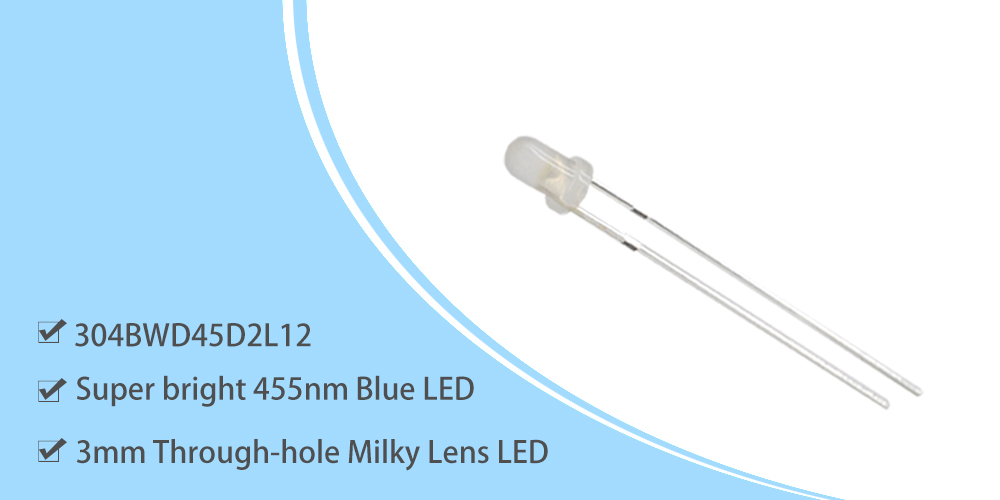

304BWD45D2L12 is a Blue Through-hole LED that with 450nm LED chip inside. With 450nm wavelength LED chip, this 3mm LED Lamps will emits a deep blue color when we light it up in the circuit. LED Lens may have a significant impact on the performance of 3mm LEDs. By changing the angle and intensity of the light emitted by LEDs, lens can affect the brightness(it's for the mcd value), color, and directionality of the light. Lenses can also help focus light and reduce scattering, thereby improving the efficiency of LEDs. As we can see from the picture, we also produce this 3mm Blue Through-hole LED with milky lens. So that it can emits a diffused blue light. Different types of lenses, such as convex or concave lenses, can produce different effects on the light emitted from the LED. Therefore, selecting the appropriate lens for the specific application is crucial to achieving optimal performance.

450nm LED 3mm blue led diffused lens

Electrical Parameters:

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.7	-	3.4	V	IF=20mA
Radiated Power	PO	-	20	-	mw	IF=20mA
Dominant Wavelength	λp	450			nm	IF=20mA
Half Width	λ△		25		nm	IF=20mA
Viewing Half Angle	θ1/2		40		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Blue 3mm LED size:

size of 3mm blue led 450nm

For all the through-hole LED Lamps, we will produce it with pure gold wire inside for the circuit connection, high quality epoxy lens to lead the lights, silver plated LED frame to hold the LED chip and connect the polarity. The most important thing is the famous branded chip inside for lighting, which will got the most stable lighting performance for our project.

304BC45D2L12 3mm Blue LED

There are kinds of application for this 3mm blue LED, some people just use it as LED indicator, some will use it as the back light project and some will use it for the LED therapy light.

Blue LED application 304BC45D2L12
