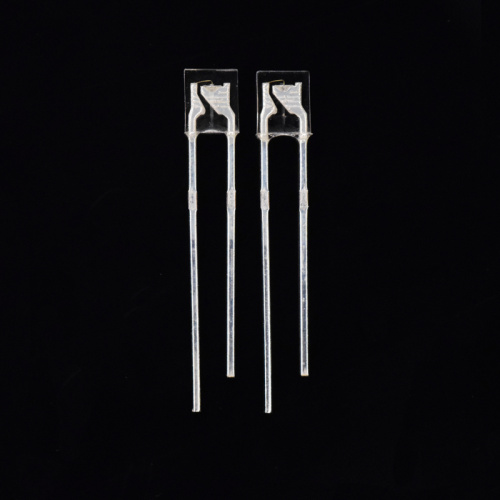

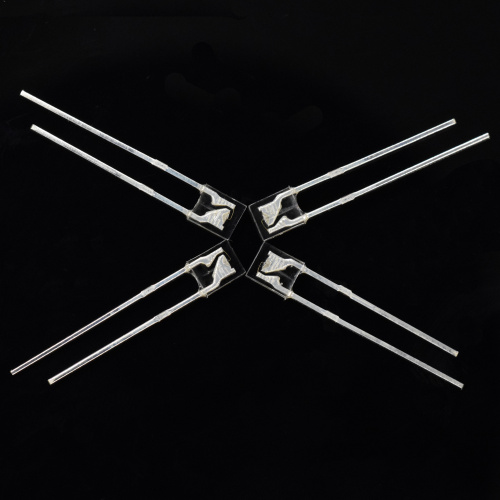

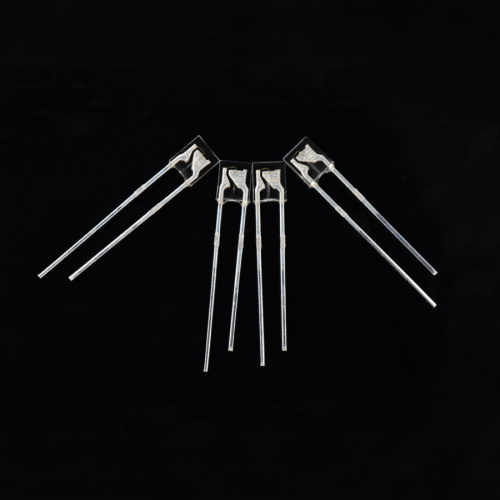

395nm UV LED 1*3*4mm Small Rectangle LED

395nm UV LED 134mm Small Rectangle LED

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 400nm LED -

132UVC-39P1L14

As we know, LED chip can be packaged with different case, generally they are classified in shape: SMD LED and through-hole LED. In through-hole LED catalog, there also have kinds of shape for it. Such as: round top, flat top, concave top and so on. The shape can be like oval through-hole LED, round through-hole LED, square through-hole LED or rectangle through-hole LED. For this small blue LED, we package it with smallest and thinnest rectangle through-hole LED. Because of this lens shape, this through-hole LED will got a wide viewing angle and had a rectangle lighting spot. Do you need some rectangle 400nm LED for your design? Contact us for more detail~

400nm LED

- Size:1*3*4mm

- Pin length: 17mm/19mm

- Color: purple LED

- Type: Water clear

- Chip brand:e Epistar

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

134mm 395nm LED

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	100mw
Pulse Forward Current	IFP	100mA
Forward Current	IF	50mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	2.8		3.0	V	IF=20mA
		3.0		3.2
		3.2		3.4
Luminous Intensity	IV	1		3	lm	IF=20mA
Peak Wavelength	λP	390		395	K	IF=20mA
		395		400
		400		405
		405		410
		410		415
Half Width	Dl		18		nm	IF=150mA
Viewing Half Angle	2q1/2		±60		deg	IF=150mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
