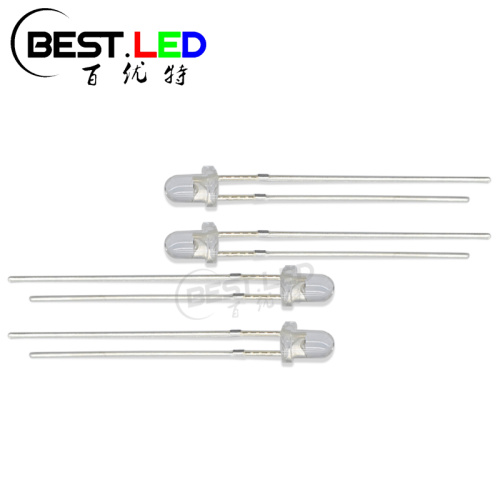

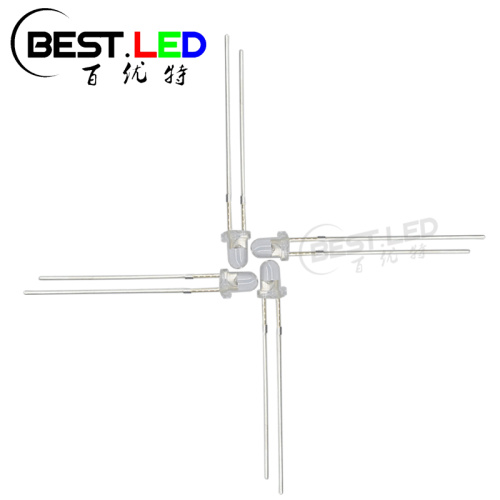

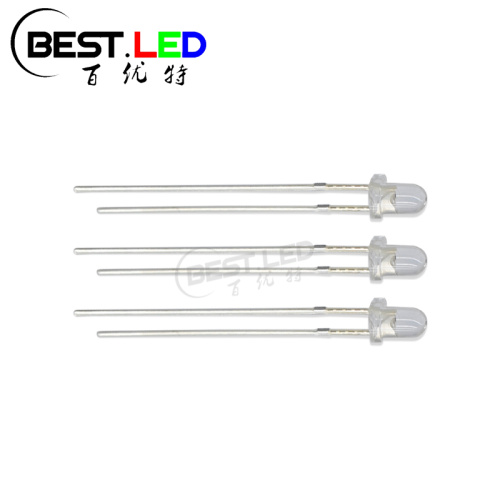

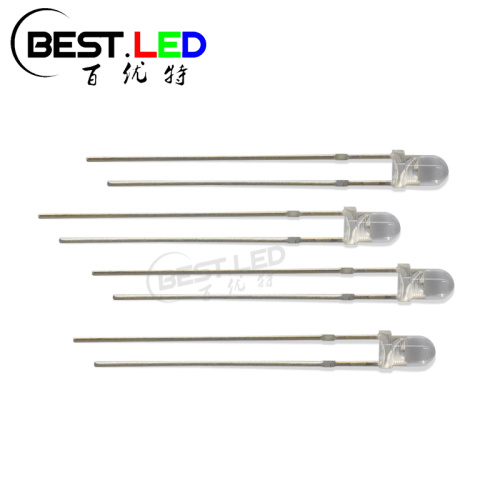

Red LED 3mm Through Hole LED Clear Lens

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000000/Week
Supply Ability:	10000000/Week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	ISO:9001
HS Code:	8541401000
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

There are kinds of brightness level for 3mm Red Through-hole LED: ultra bright, super bright, high bright and common bright ect. 3mm red LED with high brightness typically has a luminous intensity of 1000-3000 mcd (millicandela) and a forward voltage of around 2V. It is commonly used in applications such as DIY project, indicator lights, automotive lighting, and signage. This 304URC are the typcally red through-hole LED with round top clear lens and the brighness can reach 1200mcd when we light it up with 20mA. And at the same time, this LED Lamps will provide 40 degree viewing angle lighting. At the similar brightness level, red clear lens are also available. Contact us if you need more information about that!

red 3mm through-hole LED

Electrical Parameters:

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.0	-	2.4	V	IF=20mA
Brightness	IV	-	1200	-	mcd	IF=20mA
Dominant Wavelength	λp	620			nm	IF=20mA
Half Width	λ△		25		nm	IF=20mA
Viewing Half Angle	θ1/2		40		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Red 3mm LED size:

size of 3mm red LED

*This size are also available in amber LED, UV LED, Pink LED, IR LED ect.*

For all the through-hole LED Lamps, we will produce it with pure gold wire inside for the circuit connection, high quality epoxy lens to lead the lights, silver plated LED frame to hold the LED chip and connect the polarity. The most important thing is the famous branded chip inside for lighting, which will got the most stable lighting performance for our project.

Red DIP LED application

There are kinds of application for this 3mm Red LED, some people just use it as LED indicator, some will use it as the back light project and some will use it for the LED therapy light.

red through-hole LED applicatin

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Red LED 3mm Through Hole LED , Red LED 3mm DIP LED , Red 3mm Through Hole LED
