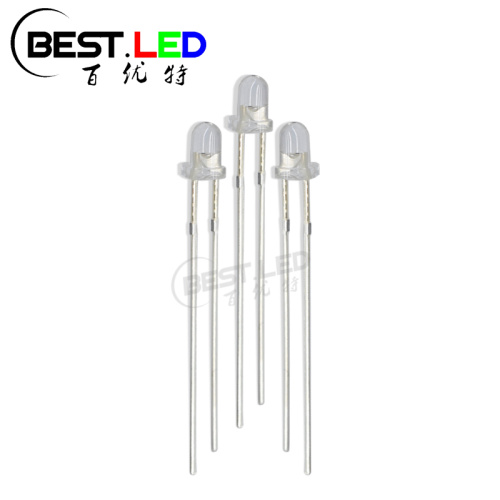

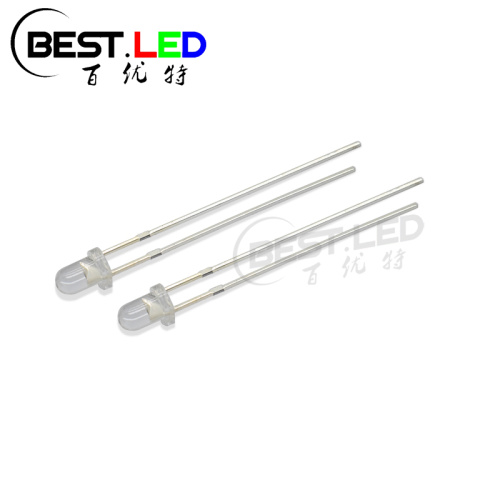

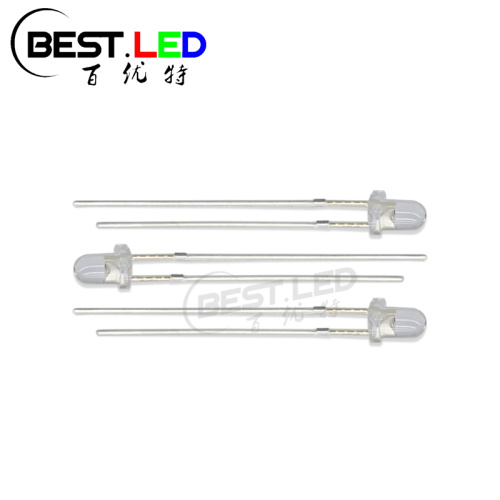

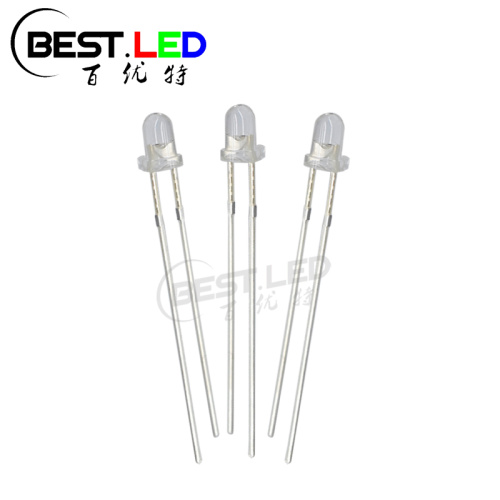

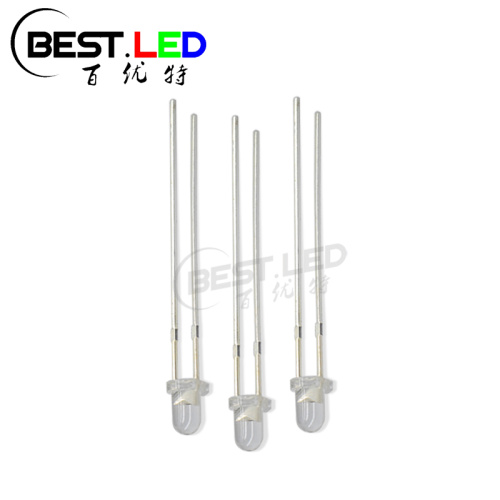

3mm Red LED Round Top Clear Lens 620nm

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000000/Week
Supply Ability:	10000000/Week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	ISO:9001
HS Code:	8541401000
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

304FRC-8 is a regular 3mm Red Through-hole LED in 3mm red LED with clear lens. Which have a 3mm round top clear shape of epoxy lens. When we light it up at 20mA, this red LED can reach high brightness at 4000mcd and offer a 40 degree viewing angle lights. The 3mm red LED diode lights emit red light when an electric current is passed through them. These diodes are small in size and are commonly used in electronic projects, such as circuit boards and DIY projects. They are also used in automotive lighting, traffic signals, and indicator lights. The 3mm size makes them easy to install and they are available in a variety of colors, including red, green, blue, yellow, and white. They are energy-efficient and have a long lifespan, making them a popular choice for lighting applications.

3mm red LED Clear lens 620nm

Electrical Parameters:

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.0	-	2.4	V	IF=20mA
Brightness	IV	-	4000	-	mcd	IF=20mA
Dominant Wavelength	λp	620			nm	IF=20mA
Half Width	λ△		25		nm	IF=20mA
Viewing Half Angle	θ1/2		40		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

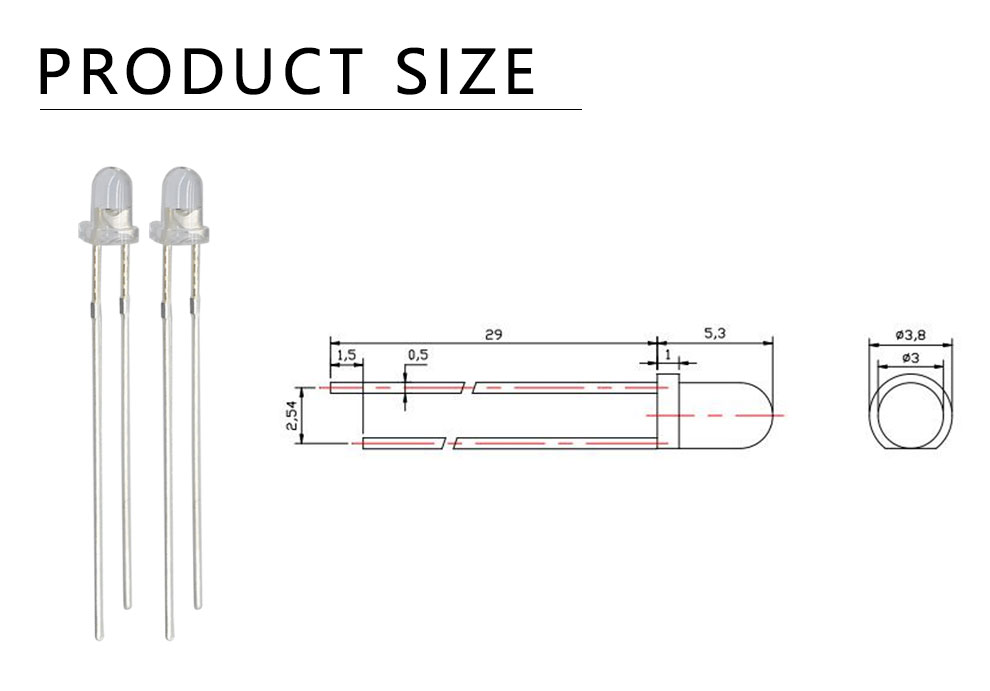

Red 3mm LED size:

size of 3mm red led clear lens

*This size are also available in amber LED, UV LED, Pink LED, IR LED ect.*

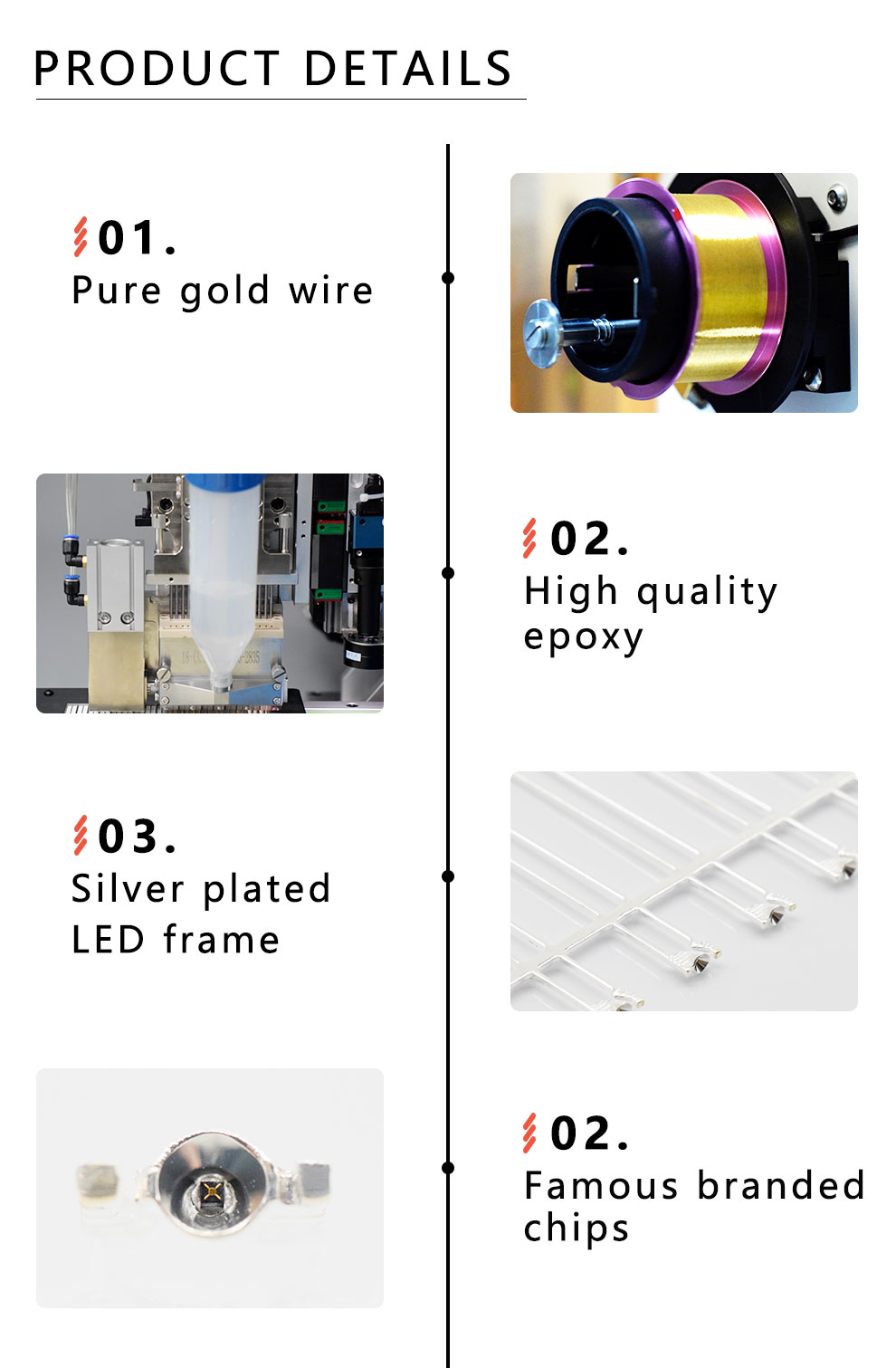

For all the through-hole LED Lamps, we will produce it with pure gold wire inside for the circuit connection, high quality epoxy lens to lead the lights, silver plated LED frame to hold the LED chip and connect the polarity. The most important thing is the famous branded chip inside for lighting, which will got the most stable lighting performance for our project.

304FRC-8 3mm through-hole LED

There are kinds of application for this 3mm Red LED, some people just use it as LED indicator, some will use it as the back light project and some will use it for the LED therapy light.

304FRC-8 3mm red LED application
