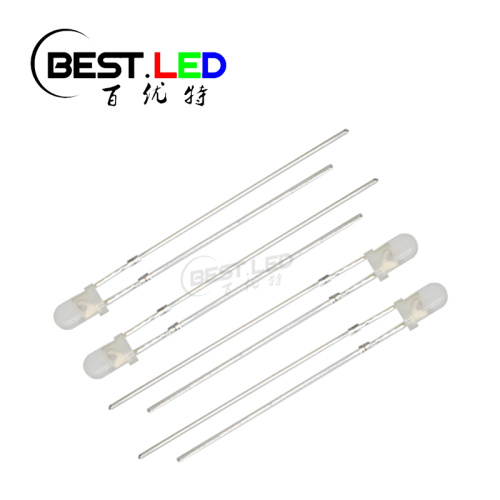

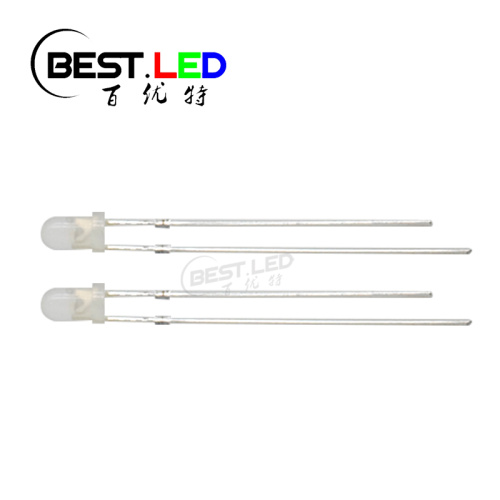

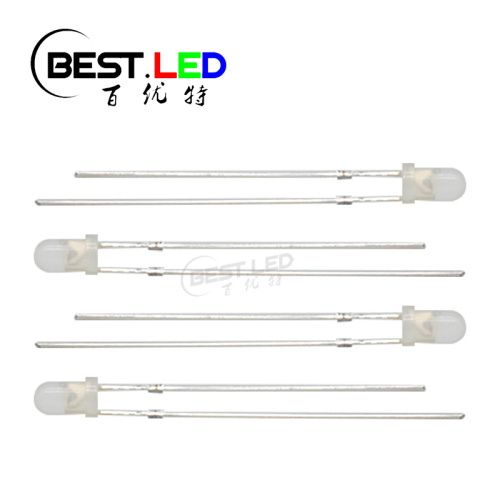

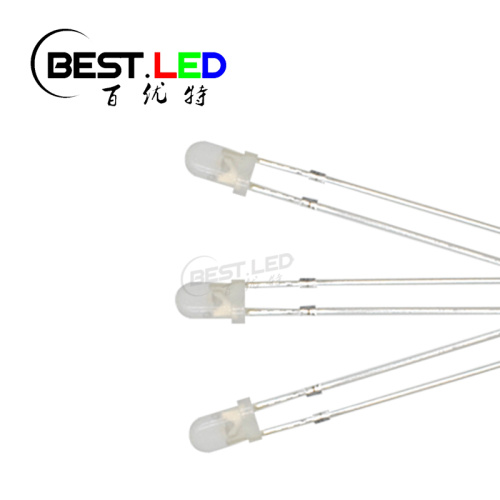

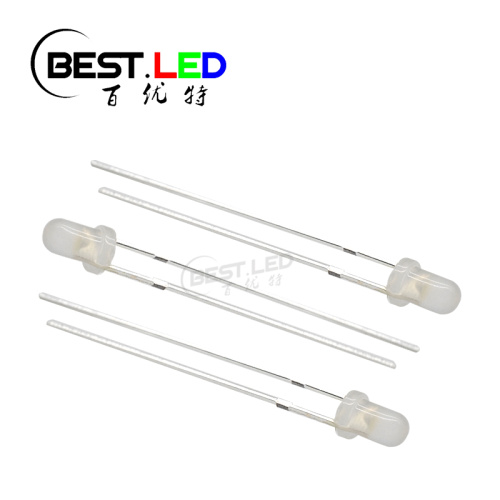

LED Basic 3mm Red LED with Milky Lens

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000000/Week
Supply Ability:	10000000/Week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	ISO:9001
HS Code:	8541401000
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

3mm LED Lamps can be package with different chip inside, when we put 520nm LED chip inside, it will be a 3mm green through-hole LED. When we produce it with 625nm LED chip inside and package it with white diffsued epoxy lens on the out side. It's 304FRWD62D3L14. as the picture. 3mm red LED with 620nm wavelength can emit red light that is visible to the human eye. It can be used for various purposes such as indicator lights, signal lights, backlighting, and decorative lighting. It can also be used in electronic devices such as remote controls, cameras, and sensors. Additionally, red light has been shown to have therapeutic benefits such as improving blood circulation and reducing inflammation, so it may also be used in medical applications, like LED therapy machine, LED beauty mask ect.

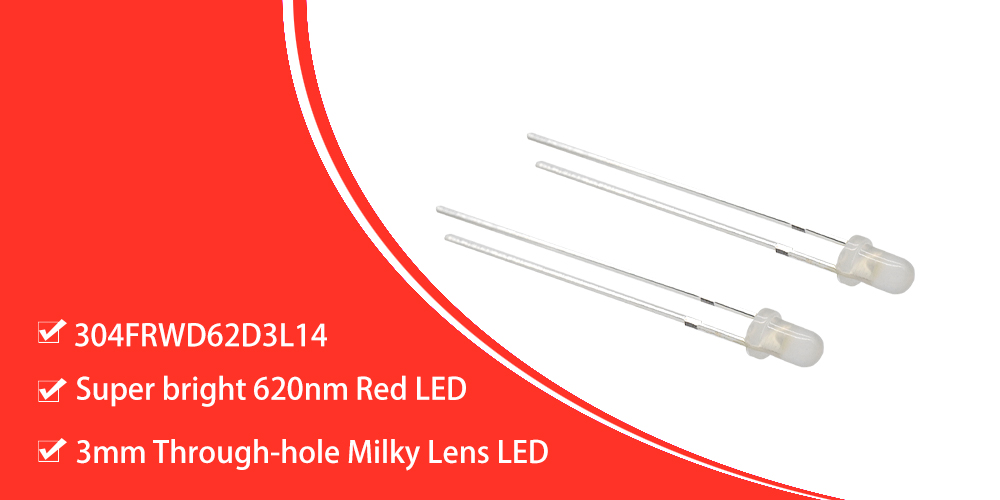

3mm red led with milky lnes

Electrical Parameters:

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.0	-	2.4	V	IF=20mA
Radiated Power	IV	-	11800	-	mcd	IF=20mA
Dominant Wavelength	λp	620			nm	IF=20mA
Half Width	λ△		25		nm	IF=20mA
Viewing Angle	θ1/2		40		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

3mm Red LED Diffsued Size:

Size of diffused 3mm red led

For all the through-hole LED Lamps, we will produce it with pure gold wire inside for the circuit connection, high quality epoxy lens to lead the lights, silver plated LED frame to hold the LED chip and connect the polarity. The most important thing is the famous branded chip inside for lighting, which will got the most stable lighting performance for our project.

304BC45D2L12 3mm Blue LED

There are kinds of application for this 3mm LED, some people just use it as LED indicator, some will use it as the back light project and some will use it for the LED therapy light.
