365nm LED Emitters 3535 SMD LED 3500-4000mw 6-8V

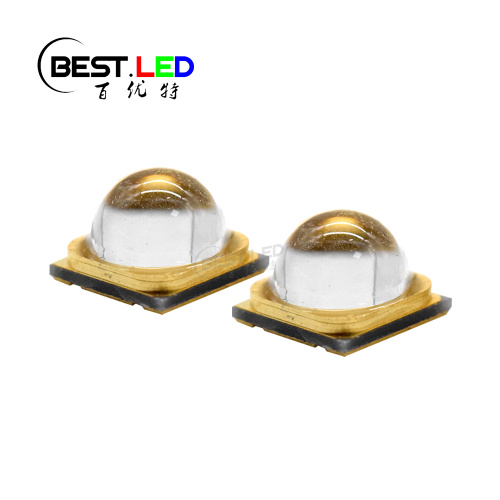

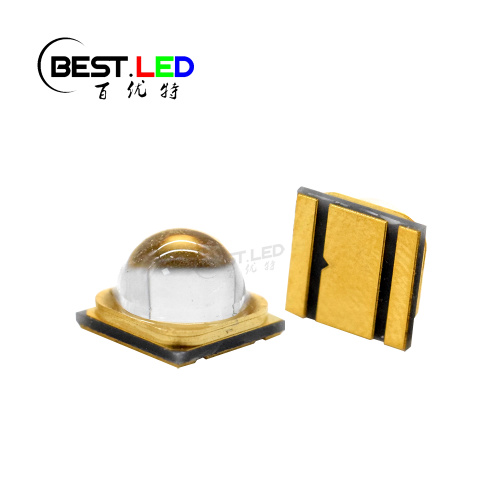

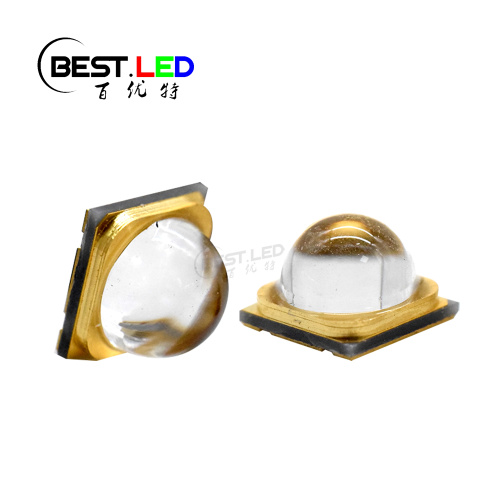

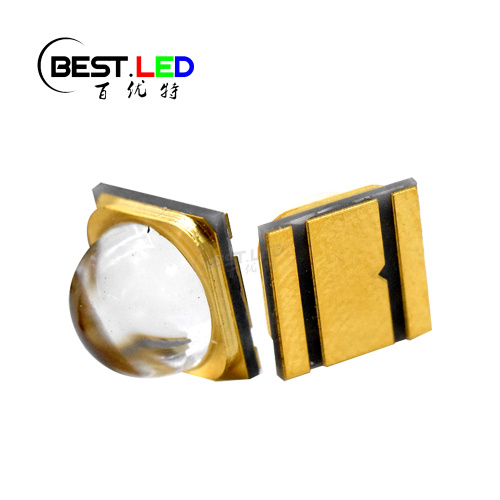

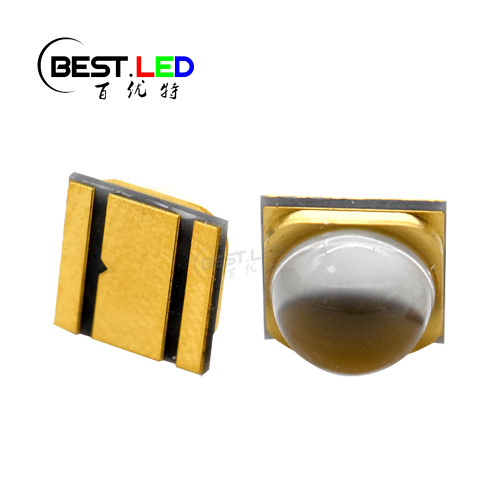

6565UVC37P45 is a UV LED that package with 3535 SMD LED and 365-370nm wavelength inside. It's a UVA ultraviolet light, normally the range is from 365nm to 405nm. The pisture as follow will show the appearance of this UV LED, there are the domed lens SMD LED. With the dome lens on the top, we will be able to concentrated in the middle of lens. Which will make this 365nm LED have a higher brightness than flat top type. Different with common small SMD LED such as 2835 SMD LED, 5730 SMD LED or 5050 SMD LED, this dome lens 3535 SMD LED have a better heat dispatching performance, which can make sure it can handle higher operation current and have better radiation in the project. If you need some high power UV LED for your project. This one will work better in your project.

Electrical Parameters:

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	6	7	8	V	IF=1400mA
Total Radiated Power	PO	3000	-	5000	mw	IF=1400mA
Dominant Wavelength	λp	365                          370			nm	IF=1400mA
Half Width	λ△		50		nm	IF=1400mA
Viewing Half Angle	θ1/2		60		deg	IF=1400mA
Reverse Current	IR			5	uA	VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
