3535 High Power Blue SMD LED 3W 450-465nm

3535 High Power Blue SMD LED 3W 450-465nm

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

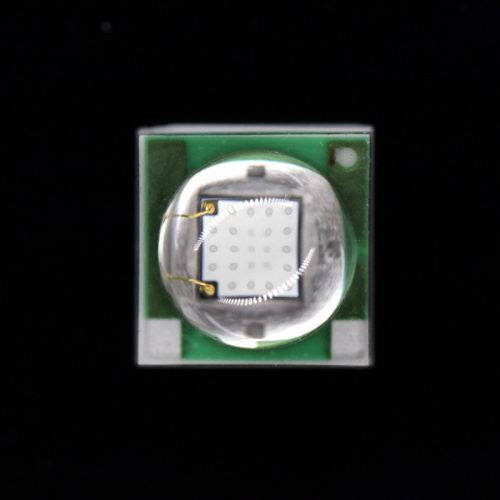

- 3535 Blue SMD LED -

3535UBC-45D35L3WZ

Heat dispatching ability are one of the important point for the SMD LED performance. Big LED chip can handle more higher current than the normal small chips, so that it will also make more heating than the small LED chip when it handle higher current. In this case, we need more good performance on the heat dispatching. 3535UBC-45D35L3WZ are high power blue SMD LED. Common SMD LED will just got 0.06W output, 0.2W or 0.5W. If all this cannot meet your requirement, these 3535 blue SMD LED with 3W LED might can meet your requirement for your project. These case have a heat stink on the bottom, which are very perfect for dispatching the extra heat~ Do you need some green LED with high output? Contact us now~ This quality won't let you disappointment!

3W High Power Blue SMD LED - 3535 SMD LED

- Size: 3.5*3.5*2mm

- Chip Number: 1 chip

- Color: blue LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

3535 blue SMD LED Size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

3535UBC-1W Blue led

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	3000mW
Pulse Forward Current	IFP	1000mA
Forward Current	IF	700mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	125°C
Operating Temperature	Topr	-40 - +80°C
Storage Temperature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5 Years
Anti-static bag	Piece	1000 Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

2.8

3.0

3.6

V

IF=350mA

Luminous Flux

ΦV1

35

40

lm

IF=350mA

Dominant Wavelength

λD

450

455

460

nm

IF=350mA

Peak Wavelength

λP

460

nm

IF=350mA

Half Width

Dl

23

nm

IF=350mA

Viewing Half Angle

2q1/2

±120

deg

IF=350mA

Reverse Current

IR

5

uA

IF=350mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Related Blue LED -

- Production -

- SMD LED Use of Attention-

SMD LED Use of attention

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

3W Blue SMD LEDs , High Power Blue SMD LED , 3W Blue LED 3535

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	2.8	3.0	3.6	V	IF=350mA
Luminous Flux	ΦV1	35		40	lm	IF=350mA
Dominant Wavelength	λD	450	455	460	nm	IF=350mA
Peak Wavelength	λP		460		nm	IF=350mA
Half Width	Dl		23		nm	IF=350mA
Viewing Half Angle	2q1/2		±120		deg	IF=350mA
Reverse Current	IR			5	uA	IF=350mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
