- 3535 Blue SMD LED -

3535UBC-1W

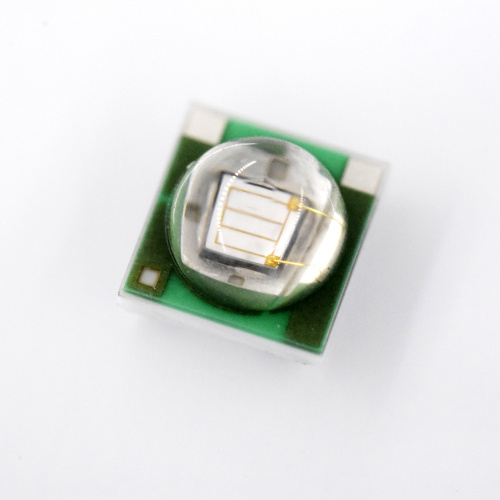

These 3535 blue LED size is 3.5*3.5*2mm and it packaged by a high power SMD LED case, which can handle the extra heat when high power LED is working. When LED is working, it will make some extra heat definitely. So that is very important that LED case can dispatch the extra heat timely. Common SMD LED will just got 0.06W output, 0.2W or 0.5W. If all this cannot meet your requirement, these 3535 blue SMD LED with 1W LED might can meet your requirement for your project. These case have a heat stink on the bottom, which are very perfect for dispatching the extra heat~ Do you need some green LED with high output? Contact us now~ This quality won't let you disappointment!

3535 SMD LED

- Size: 3.5*3.5*2mm

- Chip Number: 1 chip

- Color: blue LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

3535 blue SMD LED Size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

3535UBC-1W Blue led

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	1000mW
Pulse Forward Current	IFP	1000mA
Forward Current	IF	350mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C
