- 3528 SMD LED -

3528IRC-94L10I30

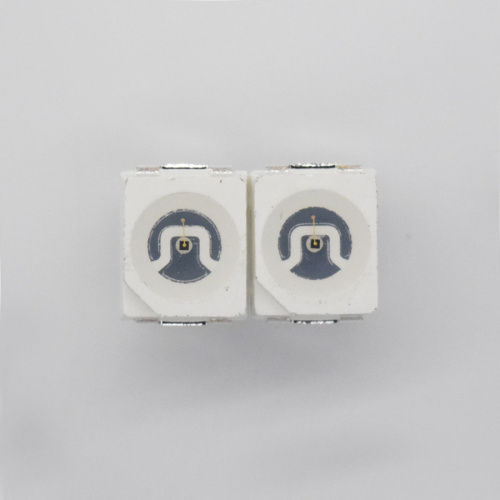

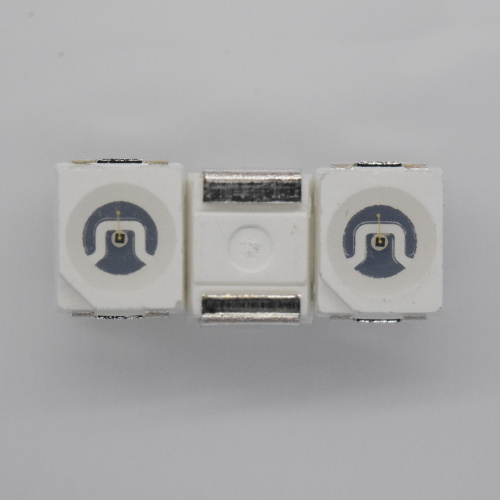

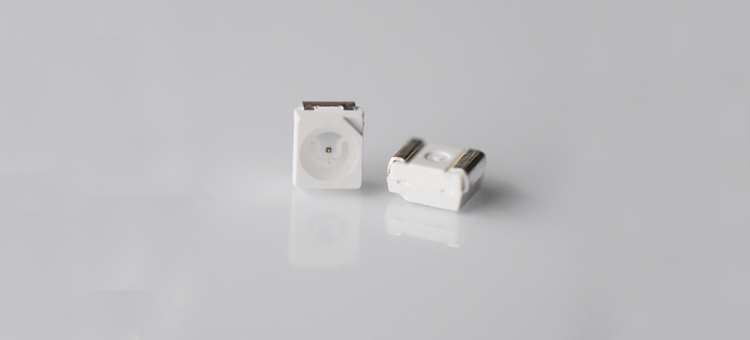

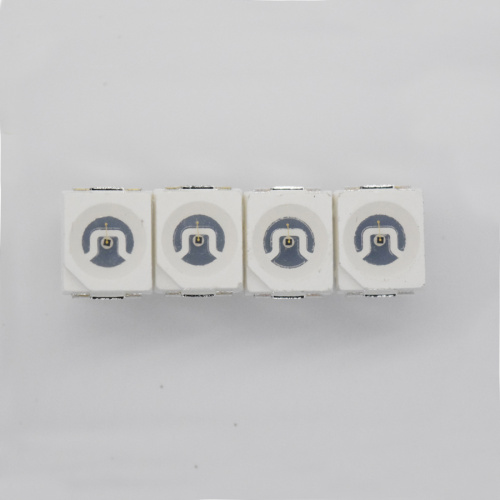

Same as other SMD LED. This 940nm IR LED main materials include: core (chip), adhesive, gold wire, bracket and epoxy resin. IR SMD LED is actually a small led. The final lighting is the chip enclosed in SMD LED. The premise of the chip lighting is conducting electricity, and the conduction is realized by the gold wire and bracket. That's the basic of IR LED. If you need some 940nm Infrared LED PLCC-2 for your project, contact us for more detail about it~

          -Dimension Parameters -

These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	50mw
Pulse Forward Current	IFP	300mA
Forward Current	IF	30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Radiant Intensity	Ee	2		5	mW/sr	IF=20mA
		4		8		IF=30mA
			11			IF=50mA
Viewing Angle	2q1/2		120		deg	IF=20mA
Peak Wavelength	λp	840	850		nm	IF=20mA
Spectral Bandwidth	Dl		50		nm	IF=20mA
Forward Voltage	VF	1.1	1.2	1.4	V	IF=20mA
		1.2	1.3	1.5		IF=30mA
				1.6		IF=50mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Use -
