3528IRC-85L10I30

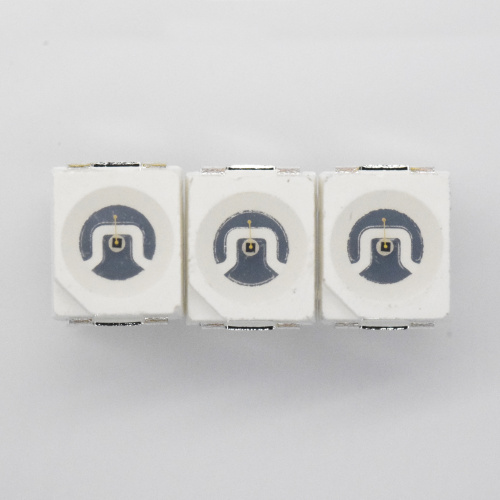

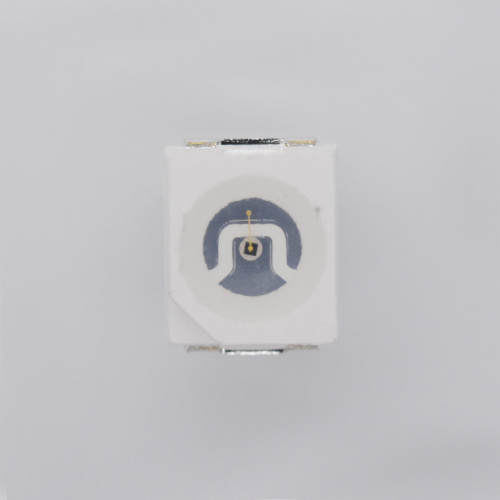

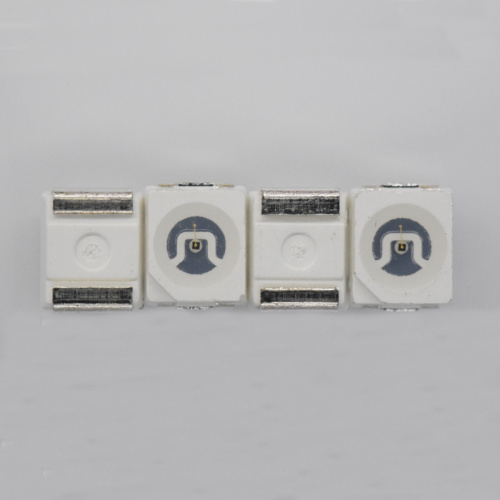

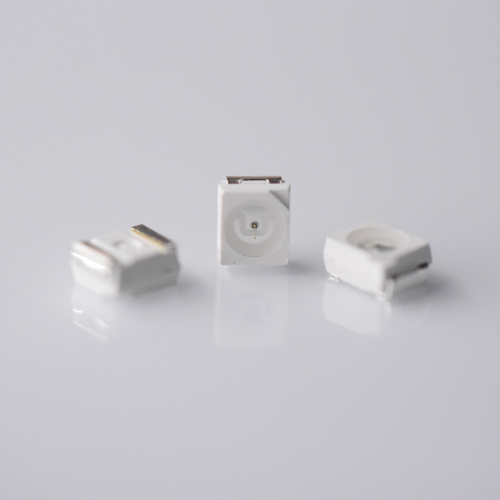

850nm and 940nm infrared LED are the most popular IR LED in our life. When the 850nm LED is working, we can see some red spot in the middle of the LED, people might think that infrared LED are invisible in our naked eyes. But the truth is: When the intensity of infrared light is high enough, it can also produce a certain feeling when it shines on the retina, so that the human eye can see the red light. These 3528 SMD LED is PLCC-2 package and top view IR LED, wide viewing angle. Pb free, RoHS compliant. There also have other similar wavelength available in our factory such as: 840nm LED, 830nm LED, 820nm LED, 810nm LED ect. With the shorter wavelength, we will got more strong red spot. Which means, at the same size, current, we light up these wavelength LED, 810nm LED will got the brightest lighting and 830nm LED follow up.

   -Dimension Parameters -

These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	100mw
Pulse Forward Current	IFP	300mA
Forward Current	IF	50mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.2	1.4	1.6	V	IF=20mA
		1.4	1.6	2.0	V	IF=50mA
				3	V	IFP=300mA
Radiant Intensitye	Ee		4.8		mw/sr	IF=20mA
			12			IF=50mA
			80			IFP=300mA
Peak Wavelength	λP	845	850		nm	IF=20mA
Half Width	Dl		25		nm	IF=20mA
Viewing Half Angle	2q1/2		±60		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel
