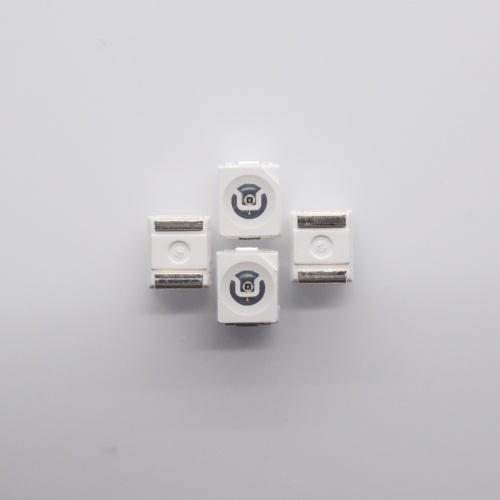

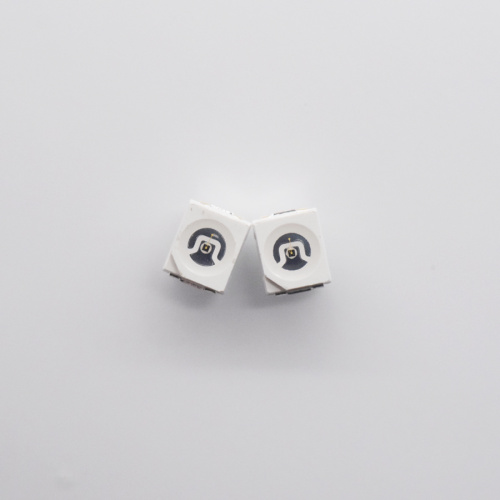

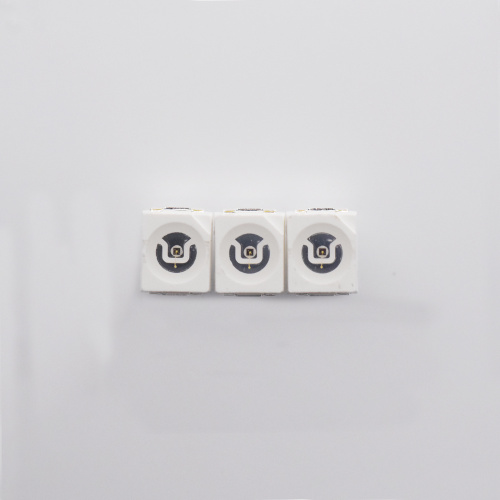

900nm infrared LEDs are mainly used fr testing instrument to defect blood gas and blood sugar of human body or for position locking. Different wavelength will have different application. Such as 940nm LEDs are perfect for remote control system, like remote control of household appliances ect. 800-810nm infrared LED is suitable for medical and cosmetic equipment, space optical communication, infrared lighting, pump source of solid lase ect. 830nm infrared emitter are widely used for high-speed road, automatic credit card system ect. If you need some 900nm infrared LED emitter with small size and surface mount device. These 3528 SMD LED will be a good choice for you~ Contact us for more detail!

       -Dimension Parameters -

These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	230mW
Pulse Forward Current	IFP	350mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.6		2.2	V	IF=100mA
Pulse Forward Voltage	VF		2.8		V	IFP=350mA
Radiant Intensity	IE	25		32	mw/sr	IF=100mA
Peak Wavelength	λP	890	900	910	nm	IF=100mA
Total Radiated Power	PO		4.2		mw	IF=100mA
Half Width	Dl		50		nm	IF=100mA
Viewing Half Angle	2q1/2		±60		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		600		ns	IF=100mA
Fall Time	Tf		300		ns	IF=100mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- 900nm LED -

- Golden Wire Connection -

- Packing -

   *We package it with vacuum packing after tape it as a reel
