550nm LED - 3528 SMD LED 555nm

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

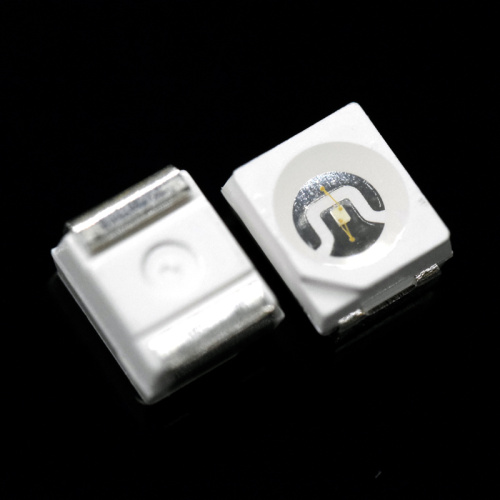

- 3528 Green SMD LED -

3528LGC-55D5L1W

Normally, the green LED will got wavelength like 500nm LED, 520nm LED or 560nm LED ect. For this 3528LGC-55L12, we package it with 550nm LED bare die inside. As we know, the 570nm LED will emits yellow green LED, if you think that color are too yellow for you, then this 3528LGC-55L12 will be a better one for you! 550nm wavelength are in the middle of the 520nm green LED and 570nm yellow green LED. These 550-555nm led are not the popular product in the LED market, but it do can offer a great lighting result for your project. If you're interesting in this 550nm green LED. Please feel free to contact us and discuss~

555nm LED - 3528 SMD LED

- Size: 2.8*3.5*1.9mm

- Chip Number: 1 chips

- Color: 550nm Green

- Type: Surface mount device

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

3528 smd 555nm led

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter

Symbol

Rating

Power Dissipation

Pd

90mw

Pulse Forward Current

IFP

100mA

Forward Current

IF

30mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

1000v

Warranty

Time

2Years

Antistatic bag

Piece

2000Bag

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF
2.7 3.0 3.4
V

IF=20mA

Luminous Intensity

IV

4
5
6
lm
IF=20mA

Peak Wavelength

λP

555

nm

IF=20mA

Dominant Wavelength

λd

550

558

nm

IF=20mA

Half Width

Dl

18

nm

IF=20mA

Viewing Half Angle

2q1/2

±60

deg

IF=20mA

Reverse Current

IR

5

uA

VR=5V

*Luminous Intensity is measured by ZWL600.

*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Production -

- SMD LED Use of Attention-

SMD LED Use of attention

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

550nm LED Light , 555nm LED SMT , 550nm Green LED

Parameter	Symbol	Rating
Power Dissipation	Pd	90mw
Pulse Forward Current	IFP	100mA
Forward Current	IF	30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	2Years
Antistatic bag	Piece	2000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	2.7	3.0	3.4	V	IF=20mA
Luminous Intensity	IV	4	5	6	lm	IF=20mA
Peak Wavelength	λP		555		nm	IF=20mA
Dominant Wavelength	λd	550		558	nm	IF=20mA
Half Width	Dl		18		nm	IF=20mA
Viewing Half Angle	2q1/2		±60		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
