Side View LED SMD IR 810nm Emitter

3014 SMD LED with 810nm Infrared LED;

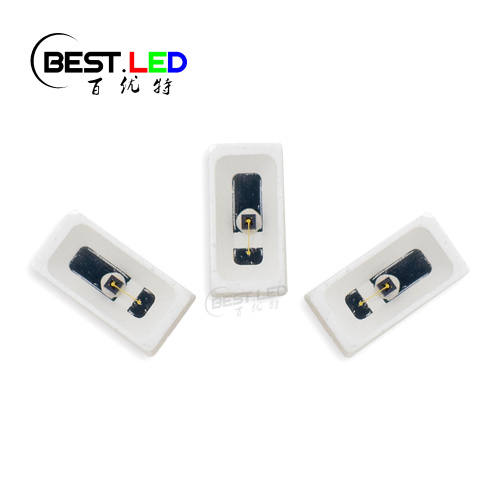

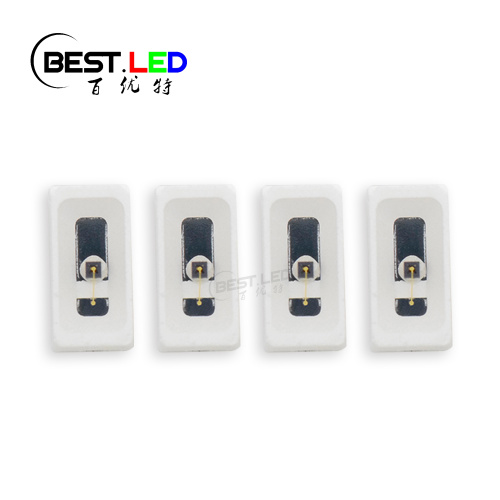

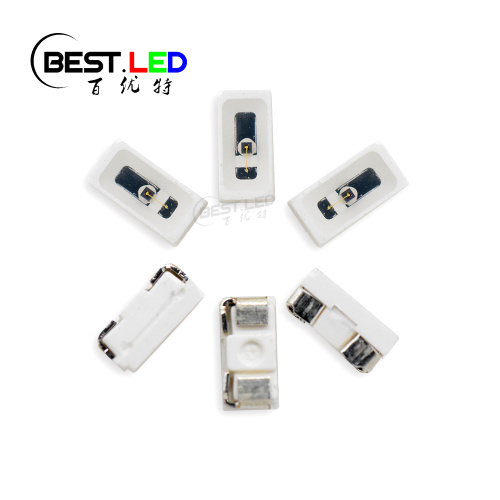

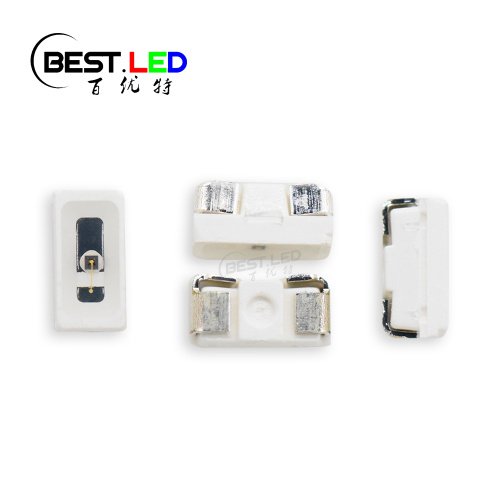

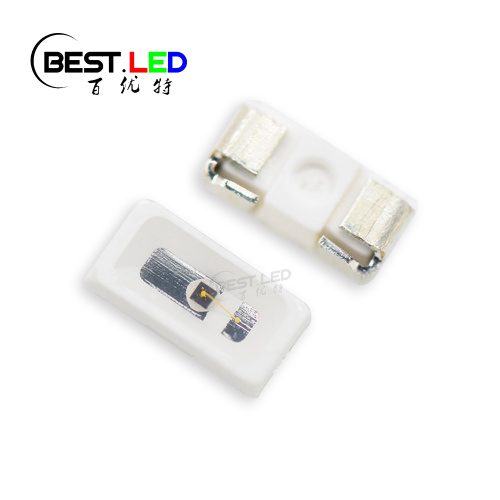

810nm LED can be package with SMD LED type or LED Lamps type. In this case, we make it with 3014 SMD LED type. This 3015FIRC-81L14I100 are similar with common 3014 SMD LED, but when you check the picture you can see there have an other extra pin on the size of this 810nm emitter. With that side pads, we will be able to solder this IR LED as it's side. Then the light will emits from the side when you use the side soldering pad. If looking for some side view LED in infrared LED wavelength, this package size will be a great choice for you.

810nm infrared LED Side View Standard LED Size:

* Yellow LED, IR LED, UV LED, Blue SMD LED ect are also available in this SMD LED case*

Electrical Parameters:

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Production of Side View SMD LED;

HANDLING PRECAUTIONS:

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible Althouth its characteristiec significantly reduces thermal stress, it is more susceptible to damage by extemal mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated Led products. Failure to comply might lead to damage and premature failure of the led

1. Handle the component along the side surfaces by using forceps or appropriate tools.

2, Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

3, Do not stack together assembled PCBS containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry.

4, 4-A The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks;

    4-B A plible material is suggested for the nozzle tip to avoid acratching or damaging the LED surface during pickup.

    4-C The dimension of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production;

    4-D As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plationg of leadframe. Special care should be taken if an LED with silicone encapsulation is to used near such substances.

5, Please aviod continued exposure to the condensing moisture environment and keep the product away from repid transitions in ambiemt temperature.

6, Product in the original sealed package is recommended to be assembled within 24 hours of opening.
