910nm Infrared Emitter 2835 SMD IR LED

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 2835 SMD LED -

2835FIRC-91L/14I100

These 910nm infrared emitter peak wavelength is 910nm and packaged by 2835 SMD LED case. This 2835 SMD LED case have a heat stink on the bottom of the LED so that when this infrared LED is working, this SMD LED case will dispatch the extra heat on time so that it can protect this IR LED from the heat problem. Shenzhen Best LED Opto-electronic Co.,Ltd offers kinds of high quality infrared LED with different wavelength, shapes and side ect. Contact us if you need some infrared LED for your project. These 910nm LED bare die can be packaged with different SMD LED case or through-hole LED as your requirement. 910nm LED are widely used in infrared light source, LED light source, ring light source, LED spotlight, LED searchlight or other medical industry. 2835FIRC-91L/14I100 is a 910nm infrared LED that packaged by 2835 SMD LED surface mount device.

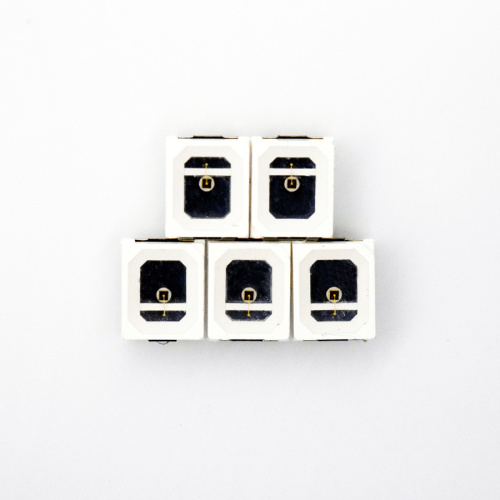

910nm LED 2835 smd led

- Size: 3.5*2.8*0.8mm

- Chip Number: 1 chip

- Color: 910nm LED

- Type: Surface mount device

- Chip brand: Tyntek

- Nick mark: Anode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

Customized 910nm IR LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	200mW
Pulse Forward Current	IFP	350mA
Forward Current	IF	100mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	4000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.6		2.2	V	IF=100mA
Pulse Forward Voltage	VF		2.7		V	IFP=350mA
Radiant Intensity	IE	25		32	mw/sr	IF=100mA
Peak Wavelength	λP	900	910	920	nm	IF=100mA
Total Radiated Power	PO		4.2		mw	IF=100mA
Half Width	Dl		50		nm	IF=100mA
Viewing Half Angle	2q1/2		±60		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		25		ns	IF=100mA
Fall Time	Tf		13		ns	IF=100mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
