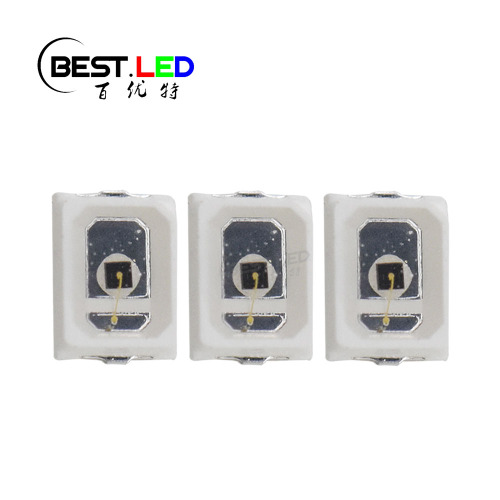

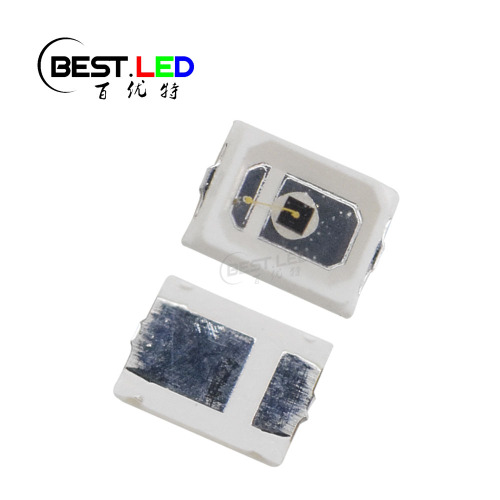

IR LED 990nm SMD 2016 Infrared LED

Get Latest Price

Min. Order:: 2000 Piece/Pieces

Min. Order:: 2000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	30000000/Month
Supply Ability:	30000000/Month
Payment Type:	T/T,Paypal,Others
Incoterm:	FCA,FOB,CIF,EXW
Certificate:	ISO:9001
HS Code:	8541100000
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

Similar with most of IR LED, this 990nm LED 2016FIRC99L14I100 is a type of infrared LED that emits light with a wavelength of 990 nanometers. And it also packaged in 2016 SMD LED frame. It is often used in applications that require infrared light, such as remote controls, security cameras, and medical devices. One of the main benefits of using a 990nm LED is that it is invisible to the naked eye, making it ideal for applications where visible light would be disruptive or unwanted. Additionally, 990nm LEDs are often more efficient than other types of infrared LEDs, meaning they require less power to produce the same amount of light. In medical applications, 990nm LEDs are sometimes used for photobiomodulation therapy, which involves exposing the body to light in order to promote healing and reduce pain. This therapy is thought to work by stimulating cellular activity and increasing blood flow to the affected area. In general, the specific benefits and applications of a 990nm LED will depend on the context in which it is used.

Electrical Parameters:

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	1.5	-	1.7	V	IF=100mA
Radiated Power	PO	-	9	-	mw/sr	IF=100mA
Dominant Wavelength	λp	990			nm	IF=100mA
Half Width	λ△		25		nm	IF=100mA
Viewing Half Angle	θ1/2		120		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
