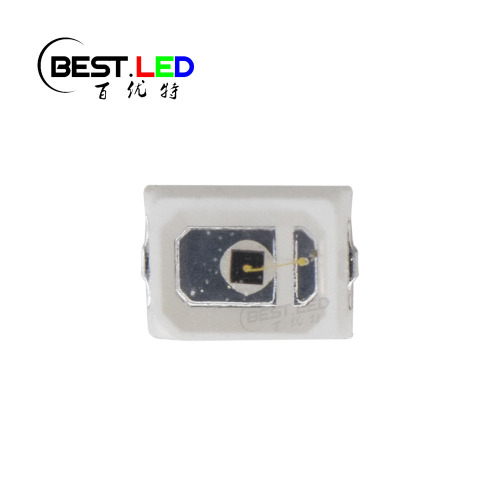

Infrared 900nm IR SMD LED 2016 SMT

Get Latest Price

Min. Order:: 2000 Piece/Pieces

Min. Order:: 2000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	30000000/Month
Supply Ability:	30000000/Month
Payment Type:	T/T,Paypal,Others
Incoterm:	FCA,FOB,CIF,EXW
Certificate:	ISO:9001
HS Code:	8541100000
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

A 900nm SMD LED can emit infrared light, which can be used for various applications such as remote control, night vision, security systems, and medical equipment. 900nm LED works by emitting light at a wavelength of 900 nanometers. This is in the infrared range of the electromagnetic spectrum, which is not visible to the human eye. The LED contains a semiconductor material that is doped with impurities to create a p-n junction. When a voltage is applied to the LED, electrons and holes recombine at the p-n junction, releasing energy in the form of photons. The wavelength of the emitted light is determined by the bandgap energy of the semiconductor material. In the case of a 900nm LED, the material used is typically gallium arsenide (GaAs) or indium gallium arsenide (InGaAs). These materials have a bandgap energy that corresponds to a wavelength of 900nm. 900nm LEDs are commonly used in applications such as sensing, communications, and medical devices.

Electrical Parameters:

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	1.5	-	1.7	V	IF=100mA
Radiated Power	PO	-	20	-	mw/sr	IF=100mA
Dominant Wavelength	λp	900			nm	IF=100mA
Half Width	λ△		25		nm	IF=100mA
Viewing Half Angle	θ1/2		120		deg	IF=100mA
Reverse Current	IR			5	uA	VR=5V
